3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1

3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1

  • 3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1
  • 3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1
  • 3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1
  • 3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1
3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC,CB etc.
Model Number: NXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD90~USD490
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Main Circuit Rating Current: 120-630A Electricity Type: AC,AC/DC
Main Circuit Rating Voltage: 600V,220V,380V,110V,24V Number Of Pole: 3,4
Phase: 3Phase Frequency: 50/60Hz
Product Name: Ac Contactor CJX2N-D09,3 Pole Ac Contactor Rated Current: 630A
Standard: IEC60947,EN/IEC60947-4-1
High Light:

ac contactor switch

,

home ac contactor

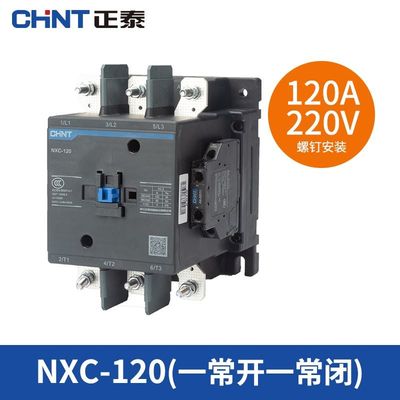

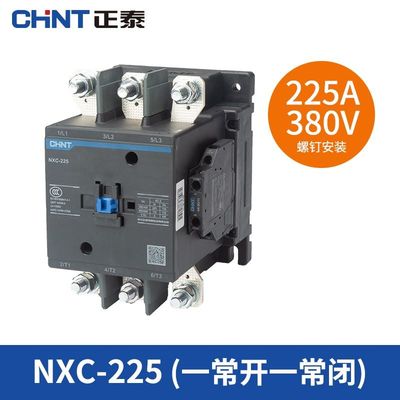

Chint NXC AC Contactor 3P, 4P 120A~630A 120,160,185,225,265,330,400,500,630A AC-3 AC-1 Coil Voltage 24V,110V,230V,380V





characteristic
• Current range 120~630A;
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), terminal connection (40~65A), convenient for customer installation;
• Product Certification: CCC, CE, CCS;


Advantage
• Compact installation
> Contactors to 38A and protection components are only 45mm wide
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength

> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time



> Easy to maintain and save costs



main information
Product Series
NXC
product name
AC Contactor
product type
Contactor
Product short name
NXC
Contactor application area
Applied to AC loads with a power factor greater than or equal to 0.95
Squirrel cage motor for switching on and off normal start
Use category
AC-1
AC-3
Number of poles
3P
Power pole contact composition
3 NO
Rated operating current [Ie]
1000 A 40 °C) on <= 440 V AC AC-1 for power supply circuit
620 A 40 °C) on...<= 440 V AC AC-3 Applicable power circuit
Control loop voltage
380 V AC 50/60 Hz
Auxiliary contact type
Excluded
Additional information
Rated working voltage [Ue]
Power circuit: <= 1000 V AC 25...400 Hz
Power circuit: <= 460 V DC
Motor power (kW)
200 kW on 220/240 V AC 50/60 Hz
335 kW on 380/400 V AC 50/60 Hz
375 kW on 415 V AC 50/60 Hz
400 kW on 440 V AC 50/60 Hz
400 kW on 500 V AC 50/60 Hz
450 kW on 660/690 V AC 50/60 Hz
450 kW on 1000 V AC 50/60 Hz
Electrical life
0.33 kA2.s 1000 A AC-1 Ue condition <= 440 V
0.8 kA2.s 640 A AC-3 Ue condition <= 440 V
0.6 kA2.s 470 A AC-3 Ue condition 660/690 V
Mechanical life
5 kA2.s
Maximum operating frequency
1200 times / hour on ... <55 °C
Action time
40...80 ms closed
100...200 ms break
Control voltage limit
Operation: 0.85...1.1 Uc on...40...400 Hz 55 °C)
Release: 0.25...0.5 Uc on...40...400 Hz 55 °C)
(~50Hz hold) power consumption (VA)
22 VA 50 Hz 0.9 20 °C)
22 VA 60 Hz 0.9 20 °C)
Conventional heating current [Ith]
1000 A on <40 °C for power supply circuit
Average impedance
0.12 mΩ - Ith 1000 A 50 Hz for power supply circuits
Heat dissipation
22 W
Rated short-time withstand current [Icw]
5050 A on <40 °C - 10 s for power supply circuit
4400 A on <40 °C - 30 s for power supply circuit
3400 A on <40 °C - 1 minute for power circuit
2200 A on <40 °C - 3 minutes for power circuit
1600 A on <40 °C - 10 minutes for power circuit
Fuses used with relays
800 A gG on...<= 440 V for power supply circuit
630 A aM on...<= 440 V Applicable power circuit
1000 A gG on...<= 440 V Applicable power circuit
Overvoltage category
III
Rated insulation voltage [Ui]
Power circuit: 1000 V in accordance with IEC 60947-4-1
Installation method
Rail mounting
Wiring ability
Control circuit: Bolt fastening cable selection: Cord without cable terminal
Control circuit: Bolt fastening cable selection: Cord with cable terminal
Control circuit: Bolt fastening cable selection: Single strand hard wire without twist terminal
Power circuit: Bus terminal cable selection: Hard wire without cable terminal Busbar cross section: 60 x 5 mm
Tightening torque
Control circuit: 1.2 Nm Fastened by bolts
Power circuit: 58 Nm through bus terminal
Power circuit: 58 Nm through cable connector
height
280 mm
width
309 mm
depth
255 mm
Control loop characteristics
AC on 50/60 Hz
Rated impulse withstand voltage [Uimp]
8 kV in accordance with IEC 60947
Safety cover
no
(~50Hz pull-in) power consumption (VA)
1650 VA 50 Hz 0.9 20 °C)
1650 VA 60 Hz 0.9 20 °C)
product weight
20.1 kg
model
LC1D
surroundings
Standards compliant
IEC 60947-4-1
GB 14048.4
certified product
CCC
Pollution level
3
Operating temperature
-5...60 °C
Storage ambient temperature
-60...80 °C
Ambient air temperature
-40...70 °C (allowed under Uc)
Working elevation
3000 m without
Shock and vibration resistance
Seismic performance contacts open (2 gn (5...300 Hz)) in accordance with IEC 60068-2-6
Seismic performance contact closure (4 gn (5...300 Hz)) in accordance with IEC 60068-2-6
Impact resistance 11 ms Contact closure condition (15 gn) in accordance with IEC 60068-2-27
Impact resistance 11 ms contact open (6 gn) in accordance with IEC 60068-2-27
Quality identification
CE statement

3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1 0

3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1 1

3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1 2

3P 4P AC Motor Contactor 120A~630A 120 160 185 225 265 330 400 500 630A AC-3 AC-1 3
