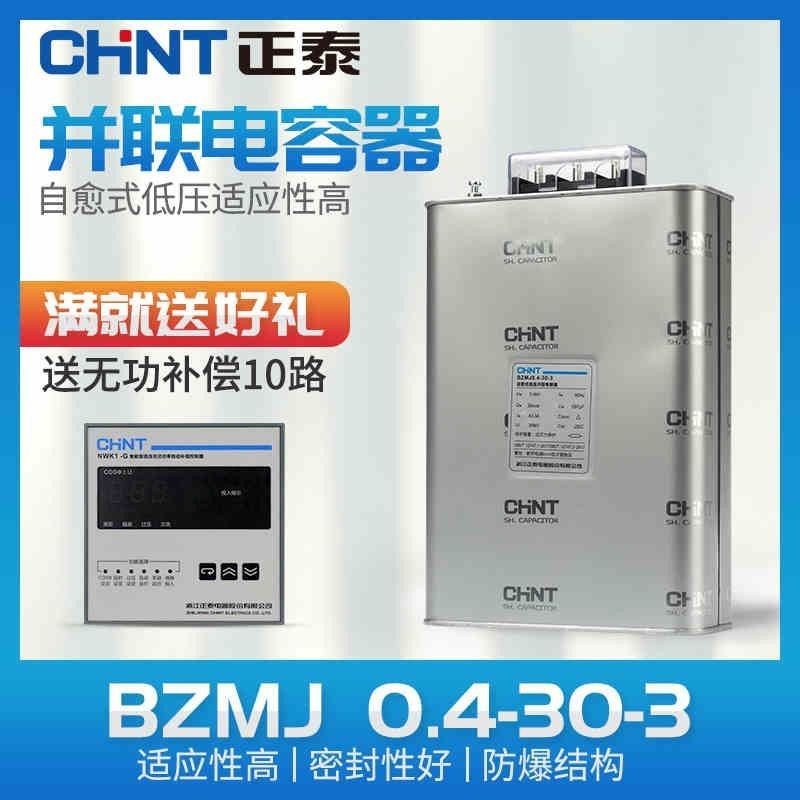

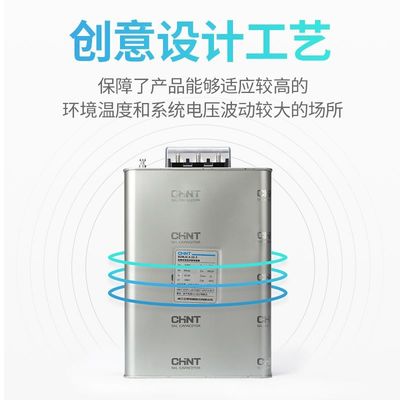

1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction

Large Image : 1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction

Product Details:

Place of Origin:	China
Brand Name:	Chint
Certification:	CE,CCC
Model Number:	BZMJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD8~USD90 (up to 450V/60kvar)
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	5,000pcs/month

Contact Now

Detailed Product Description

Rated Frequency:	50/60Hz	Ambient Temperature:	-25~40 Degree Celsius
Rated Capacity:	1~60kvar	Voltage Range:	230V, 400V, 450V, 525V, 690V,
Install:	Screw Plate Mount
Highlight:	ac contactor switch , home ac contactor

Chint BZMJ Low Voltage Self-healing Shunt Capacitor Banks for Reactive Energy Compensation and Power Factor Correction

General

Power factor determines how well you use your power. It’s the simple ratio of your real power over your apparent power. The general engineering practice or rule of thumb is to keep your power factor number as close to 1 as possible. Why correct power factor? Correcting power factor can reduce your utility bills, reduces apparent power and loading on your distribution network, reduces carbon emissions, and improves voltage regulation. The most cost-effective way to correct power factor is to use automatic capacitor systems suitable for small, medium, and large network installations.

**Main**
range of product	BZMJ
product or component type	Capacitor
network frequency	50/60 Hz
series name	BZMJ
network harmonic content	<= 20 %
Electrical parameters	45.1 kvar 380 V 50 Hz 50 kvar 400 V 50 Hz 53.8 kvar 415 V 50 Hz
maximum permissible voltage	1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity	1.8 x In
rated voltage	380…415 V AC 50/60 Hz

**Complementary**
dielectric losses	< 0.2 W/kvar
power losses	< 0.5 W/kVAr
capacitance tolerance	- 5 % to 10 %
voltage test	2.15 x Un AC between terminals for 10 s <= 660 V - 3 kV AC between terminal and container for 10 s >= 660 V - 6 kV AC between terminal and container for 10 s
inrush current	250 x In
maximum switching operation per year	7000
service life in hours	130000 h
dielectric material	Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut)
impregnation material	Non-PCB dry PUR resin Biodegradable
type of installation	Indoor installation
connections - terminals	ClampTite terminal
mounting mode	Upright/horizontal
diameter	136 mm
height	321 mm
net weight	5.3 kg

**Environment**
standards	IEC 60831-2 IEC 60831-1
IP degree of protection	IP00
operating altitude	2000 m
temperature class	D
ambient air temperature for operation	-25…55 °C
relative humidity	95 %

1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction 0

1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction 1

1~60kvar Low Voltage Components Self Healing Shunt Capacitor Banks Compensation Power Factor Correction 2
