25A 12 Pole Terminal Block 230V 400V 660V Fixed Barrier Screw Plate Mount
Product Details
| Rated Voltage: | 230,400v | Ambient Temperature: | -40~90 Degree Celsius |
|---|---|---|---|
| Insulation Voltage: | 660V | Install: | Screw Plate Mount |
| Highlight |
25a 12 pole terminal block,230v 12 pole terminal block,400v terminal block 12 pole |
||
Product Description

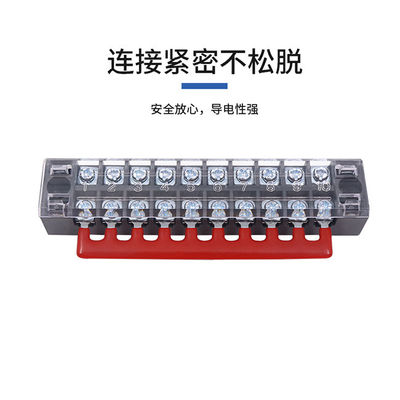

TB Series Fixed Barrier 25A 12 Pole Terminal Block 230V,400V,660V
Product Description
TB series is applicable to circuit with alternating current of 50Hz, rated voltage not more than 600V and rated current not more than 100A for connection of wire. Standard: GB/T 14048.7 IEC 60947-7-1.
Ordering information
3.1 Pay attention to type, connection area or current, classification and quantity of products when ordering. 3.2 Regular terminal block shall be formed with sole block. 3.3 Other special requirements shall be noted. 3.4 Ordering example: TB-10003 5 Means ordering model is TB, rated current is 100A, and has 3 groups and quantity is 5.
|
TB-15 Fixed Barrier 15A 3 Pole Terminal Block |
|
Gerneral Product Information |
|
|
Item number: |
TB-1503 |
|
Rating: |
600V, 15A, 3 Poles |
|
Size: |
46.5*22.0*17.5mm (L*W*H) |
|
Wire Size: |
2.0 mm2 / AWG 14 |
|
Screw Size: |
M3 |
|
Dimensions [mm] |
||||
|
Item No. |
Poles (P) |
Length (L) |
Width (W) |
Height (H) |
|
TB-1503 |
3 |
46.5 mm |
22.0 mm |
17.5 mm |
|
TB-1504 |
4 |
55.5 mm |
||
|
TB-1506 |
6 |
73.5 mm |
||
|
TB-1512 |
12 |
128.5 mm |
||
|
TB-2512 Fixed Barrier 25A 12 Pole Terminal Block |
|
Gerneral Product Information |
|
|
Item number: |
TB-2512 |
|
Rating: |
600V, 25A, 3 Poles |
|
Size: |
147.0*28.0*19.0mm (L*W*H) |
|
Wire Size: |
6.0 mm2 / AWG 10 |
|
Screw Size: |
M4 |
|
Dimensions [mm] |
||||
|
Item No. |
Poles (P) |
Length (L) |
Width (W) |
Height (H) |
|

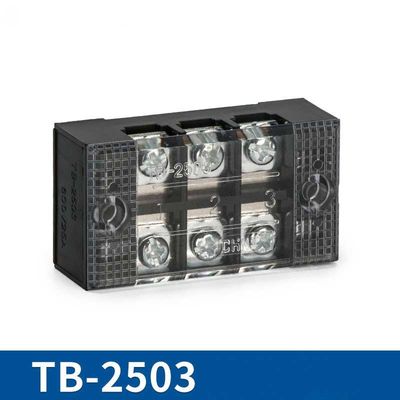

TB-2503 |
3 |
50.5 mm |
28.0 mm |
19.0 mm |
|
TB-2504 |
4 |
61.5 mm |
||
|
TB-2506 |
6 |
82.5 mm |
||
|
TB-2512 |
12 |
147.0 mm |
||
|
Specification Sheet |
||||||||
|

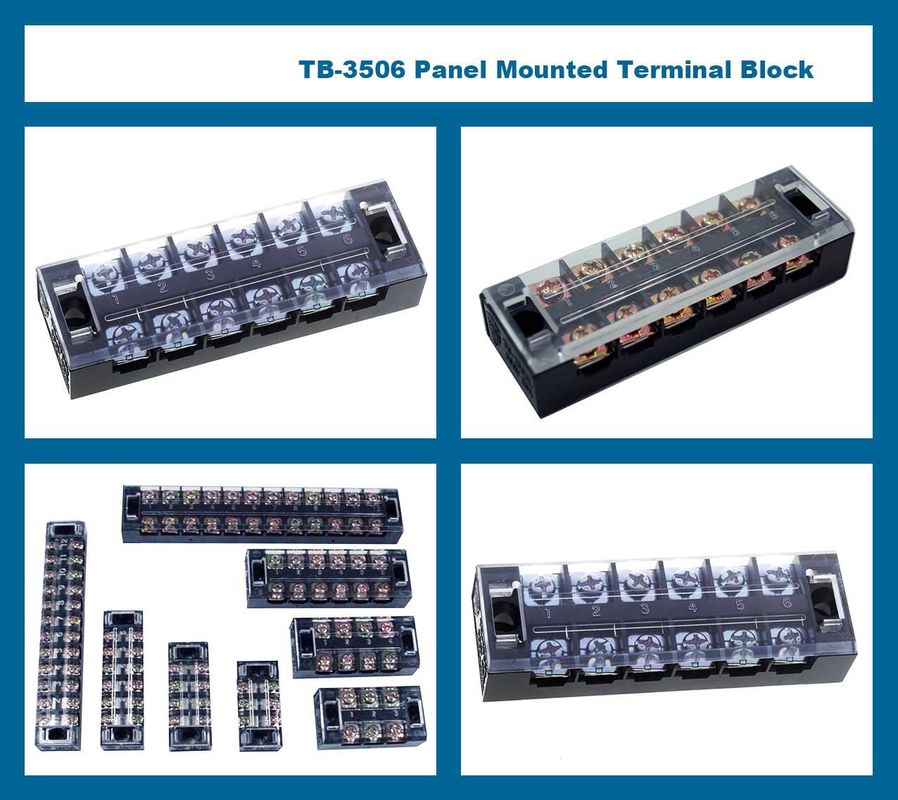

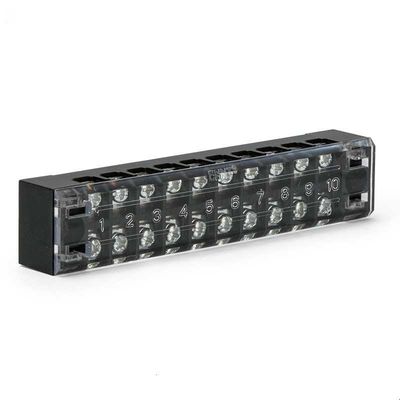

TB Series Product Picture |
|
|||||||
|
Item No. |
TB-1503 |
TB-1504 |
TB-1506 |
TB-1512 |
TB-2503 |
TB-2504 |
TB-2506 |
TB-2512 |
|
Electrical Specifications |
|
|||||||
|
Rated Volt [V] |
600V |
|||||||
|
Rated Current [A] |
15A |
25A |
||||||
|
Wire Size [mm2] |
2.0 mm2 |
6.0 mm2 |
||||||
|
Wire Size [AWG] |
AWG 14 |
AWG 10 |
||||||
|
Materials |
|
|||||||
|
Insulator Materials |
PC |
|||||||
|
Color |
Black (White, Blue, Red, Brown, ...) |
|||||||
|
Flame Retarded Grade |
UL94V-2 (UL94V-0) |
|||||||
|
Operating Temperature [℃] |
-40℃+110℃ (Max: +220℃) |
|||||||
|
Conductor |
Brass, Nickel Plated (Copper, Tin Plated) |
|||||||
|
Dimensions |
Protective Cover come with terminal blocks for free. No Marker Strip needed. (Molded Printed.) |
|||||||
|
Total Length L [mm] |
46.5 |
55.5 |
73.5 |
128.5 |
50.5 |
61.5 |
82.5 |
147.5 |
|
Ref. Length L1 [mm] |
36.5 |
45.5 |
63.5 |
118.0 |
40.0 |
51.0 |
72.0 |
136.0 |
|
Gap A [mm] |
7.0 |
8.0 |
||||||
|
Pitch B [mm] |
9.0 |
10.5 |
||||||
|
Width W [mm] |
22.0 |
28.0 |
||||||
|
Height H [mm] |
17.5 |
19.0 |
||||||
|
Screw (C) (Steel, Zinc Plated) |
M3 |
M4 |
||||||
|
Rated Torque [N-m] |
0.5 |
1.2 |
||||||
|
Rated Torque [in-lb] |
4.4 |
10.6 |
||||||
|
Poles |
3 |
4 |
6 |
12 |
3 |
4 |
6 |
12 |
|
Specification Sheet |
||||||||
|
TB Series Product Pictures |
|
|||||||
|
Item No. |
TB-2503L |
TB-2504L |
TB-2506L |
TB-2512L |
TB-3503 |
TB-3504 |
TB-3506 |
TB-3512 |
|
Electrical Specifications |
|
|||||||
|
Rated Volt [V] |
600V |
|||||||
|
Rated Current [A] |
25A |
35A |
||||||
|
Wire Size [mm2] |
6.0 mm2 |
10.0 mm2 |
||||||
|
Wire Size [AWG] |
AWG 10 |
AWG 8 |
||||||
|
Materials |
|
|||||||
|
Insulator Materials |
PC |
|||||||
|
Color |
Black (White, Blue, Red, Brown, ...) |
|||||||
|
Flame Retarded Grade |
UL94V-2 (UL94V-0) |
|||||||
|
Operating Temperature [℃] |
-40℃~+110℃ (Max: +220℃) |
|||||||
|
Conductor |
Brass, Nickel Plated (Copper, Tin Plated) |
|||||||
|
Dimensions |
Protective Cover come with terminal blocks for free. No Marker Strip needed. (Molded Printed.) |
|||||||
|
Total Length L [mm] |
56.0 |
68.0 |
92.0 |
164.0 |
56.0 |
68.0 |
92.0 |
164.0 |
|
Ref. Length L1 [mm] |
45.0 |
57.0 |
81.0 |
153.0 |
45.0 |
57.0 |
81.0 |
153.0 |
|
Gap A [mm] |
10.0 |
|||||||
|
Pitch B [mm] |
12.0 |
|||||||
|
Width W [mm] |
30.0 |
|||||||
|
Height H [mm] |
19.5 |
|||||||
|
Screw (C) (Steel, Zinc Plated) |
M4 |
|||||||
|
Rated Torque [N-m] |
1.2 |
|||||||
|
Rated Torque [in-lb] |
10.6 |
|||||||
|
Poles |
3 |
4 |
6 |
12 |
3 |
4 |
6 |
12 |
|
Packaging |
|
50pcs/box, 200pcs/4boxes/N.W. :19.0kgs /carton |
Product Highlights
