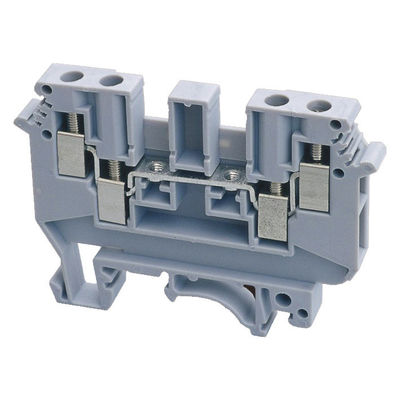

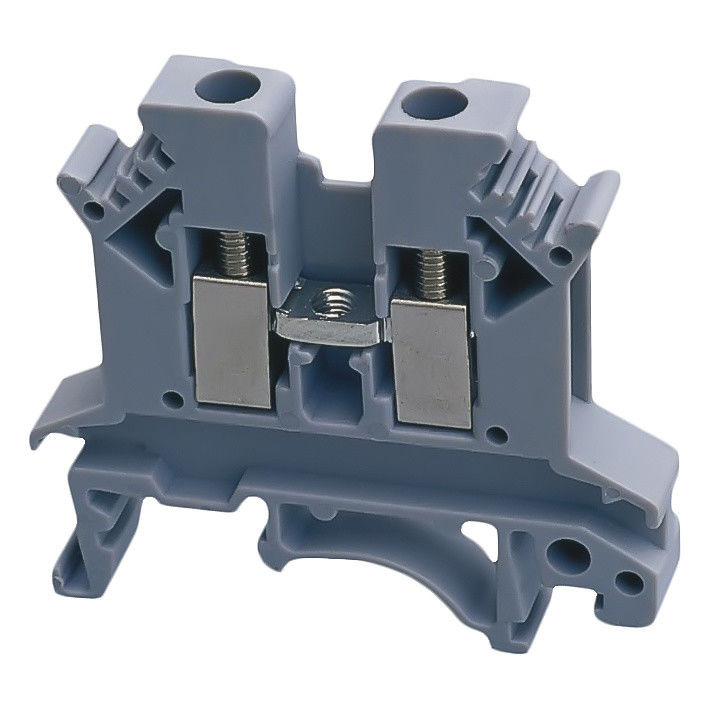

All copper JCUK-2.5N 2.5b terminal board terminal block phoenix type terminal block 230V,400V,660V
Product Description
UK series is applicable to circuit as wire connection with rated voltage not more than 690 V (660V) and rated cross-sectional 2 area of 150mm . Standard: GB/T 14048.7 IEC 60947-7-1
Ordering information
3.1 When ordering, you shall indicate product type, wiring area or current, category, and quantity;
3.2 Conventional terminal block consists of 10 pieces to a line.
3.3 Other special requirements shall be indicated.
3.4 Ordering example: JCUK-2.5N/10 5 pieces 2 Mean: Product number: JCUK, wiring area: 2.5mm , category: general type and total quantity: 5
UK series combined terminal row adopts frame type screwconnection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz (60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm² conncction conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.
Characteristics:
1, Reasonable installation structure design, wide general-purpose nature, can be used both G type and TH type guide rail. If it is above 50mm, adopts fasten accessory installation.
2, Small volume, complete set of spccification, big connectcd conductor sectional area and good electrical conductivity, the one that is below 50mm adopts copper press line frame and copper fasten screw; and the one that is above 50mm, adopts copper press line frame and steel screw and copper skirt plate. It has big tighten moment and self-locking function.
3, The strong combined function makes the connection of conductor be simpler.
Explain:
(1) End covcr: Thickncss 1.5mm grey
(2) 10 Center counection-strips, can be divided into 2 position or 3 position.
(3) Isolator bridge bar: 10-position, divisible need cushion block.
(4) Switch bar for 2 terminal blocks complete, add end cover between two teminals.
(5) Separating plate: be used for electrical separation of neighbouring brodges.
(6) Partition plate: 1.5mm Thickness
(7) Unviersal end fixed piece.
General
|
Number of levels |
1 |
|---|---|
|
Number of connections |
2 |
|
Potentials |
1 |
|
Nominal cross section |
10 mm² |
|
Color |
gray |
|
Insulating material |
PA |
|
Flammability rating according to UL 94 |
V0 |
|
Rated surge voltage |
8 kV |
|
Degree of pollution |
3 |
|
Overvoltage category |
III |
|
Insulating material group |
I |
|
Maximum power dissipation for nominal condition |
1.82 W |
|
Designation |
Level 1 above 1 below 1 |
|
Maximum load current |
76 A (with 16 mm² conductor cross section) |
|
Nominal current IN |
57 A |
|
Nominal voltage UN |
800 V |
|
Open side panel |
Yes |
|
Shock protection test specification |
IEC 60529:2001-02 |
|
Back of the hand protection |
guaranteed |
|
Finger protection |
guaranteed |
|
Result of surge voltage test |
Test passed |
|
Surge voltage test setpoint |
9.8 kV |
|
Result of power-frequency withstand voltage test |
Test passed |
|
Power frequency withstand voltage setpoint |
2 kV |
|
Result of the test for mechanical stability of terminal points (5 x conductor connection) |
Test passed |
|
Result of bending test |
Test passed |
|
Bending test rotation speed |
10 rpm |
|
Bending test turns |
135 |
|
Bending test conductor cross section/weight |
0.5 mm² / 0.3 kg |
|
|
10 mm² / 2 kg |
|
|
16 mm² / 2.9 kg |
|
Tensile test result |
Test passed |
|
Conductor cross section tensile test |
0.5 mm² |
|
Tractive force setpoint |
20 N |
|
Conductor cross section tensile test |
10 mm² |
|
Tractive force setpoint |
90 N |
|
Conductor cross section tensile test |
16 mm² |
|
Tractive force setpoint |
100 N |
|
Result of tight fit on support |
Test passed |
|
Tight fit on carrier |
NS 32/NS 35 |
|
Setpoint |
5 N |
|
Result of voltage-drop test |
Test passed |
|
Requirements, voltage drop |
≤ 3.2 mV |
|
Result of temperature-rise test |
Test passed |
|
Short circuit stability result |
Test passed |
|
Conductor cross section short circuit testing |
10 mm² |
|
Short-time current |
1.2 kA |
|
Conductor cross section short circuit testing |
16 mm² |
|
Short-time current |
1.92 kA |
|
Result of thermal test |
Test passed |
|
Proof of thermal characteristics (needle flame) effective duration |
30 s |
|
Oscillation, broadband noise test result |
Test passed |
|
Test specification, oscillation, broadband noise |
DIN EN 50155 (VDE 0115-200):2008-03 |
|
Test spectrum |
Service life test category 1, class B, body mounted |
|
Test frequency |
f1 = 5 Hz to f2 = 150 Hz |
|
ASD level |
1.857 (m/s2)2/Hz |
|
Acceleration |
0,8 g |
|
Test duration per axis |
5 h |
|
Test directions |
X-, Y- and Z-axis |
|
Shock test result |
Test passed |
|
Test specification, shock test |
DIN EN 50155 (VDE 0115-200):2008-03 |
|
Shock form |
Half-sine |
|
Acceleration |
5g |
|
Shock duration |
30 ms |
|
Number of shocks per direction |
3 |
|
Test directions |
X-, Y- and Z-axis (pos. and neg.) |
|
Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
|
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) |
130 °C |
|
Static insulating material application in cold |
-60 °C |
|
Behavior in fire for rail vehicles (DIN 5510-2) |
Test passed |
|
Flame test method (DIN EN 60695-11-10) |
V0 |
|
Oxygen index (DIN EN ISO 4589-2) |
>32 % |
|
NF F16-101, NF F10-102 Class I |
2 |
|
NF F16-101, NF F10-102 Class F |
2 |
|
Surface flammability NFPA 130 (ASTM E 162) |
passed |
|
Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
|
Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
|
Calorimetric heat release NFPA 130 (ASTM E 1354) |
28 MJ/kg |
|
Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 |
|
Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 |
|
Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 |
|
Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 |
Connection data
|
Connection method |
Screw connection |
|---|---|
|
Screw thread |
M4 |
|
Stripping length |
10 mm |
|
Tightening torque, min |
1.5 Nm |
|
Tightening torque max |
1.8 Nm |
|
Connection in acc. with standard |
IEC 60947-7-1 |
|
Conductor cross section solid min. |
0.5 mm² |
|
Conductor cross section solid max. |
16 mm² |
|
Conductor cross section AWG min. |
20 |
|
Conductor cross section AWG max. |
6 |
|
Conductor cross section flexible min. |
0.5 mm² |
|
Conductor cross section flexible max. |
10 mm² |
|
Min. AWG conductor cross section, flexible |
20 |
|
Max. AWG conductor cross section, flexible |
8 |
|
Conductor cross section flexible, with ferrule without plastic sleeve min. |
0.5 mm² |
|
Conductor cross section flexible, with ferrule without plastic sleeve max. |
10 mm² |
|
Conductor cross section flexible, with ferrule with plastic sleeve min. |
0.5 mm² |
|
Conductor cross section flexible, with ferrule with plastic sleeve max. |
6 mm² |
|
Cross section with insertion bridge, solid max. |
10 mm² |
|
Cross section with insertion bridge, stranded max. |
10 mm² |
|
2 conductors with same cross section, solid min. |
0.5 mm² |
|
2 conductors with same cross section, solid max. |
4 mm² |
|
2 conductors with same cross section, stranded min. |
0.5 mm² |
|
2 conductors with same cross section, stranded max. |
4 mm² |
|
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. |
0.5 mm² |
|
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. |
6 mm² |
|
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. |
0.5 mm² |
|
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. |
2.5 mm² |
|
Connection in acc. with standard |
IEC/EN 60079-7 |
|
Conductor cross section solid min. |
0.5 mm² |
|
Conductor cross section solid max. |
16 mm² |
|
Conductor cross section AWG min. |
20 |
|
Conductor cross section AWG max. |
6 |
|
Conductor cross section flexible min. |
0.5 mm² |
|
Conductor cross section flexible max. |
10 mm² |
|
Internal cylindrical gage |
B6 |
