Electrical Dmc Material Insulator Busbar 3 Phase 1000v Panel Building
Product Details
| Rated Voltage: | Up To 1000v | Ambient Temperature: | -40~90 Degree Celsius |
|---|---|---|---|
| Insulation Voltage: | 5000V | Install: | Screw Plate Mount |
| Highlight |
dmc insulator busbar,3 phase 1000v insulator busbar,electrical 1000v bus bar insulator |
||
Product Description
Electrical Insulator Support SM Series For Low Voltage Busbar DMC Material 3-phase 1000V for Panel Building
Product Description
Insulating Connector Bus bar Insulator SMC series
Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.
Specifications

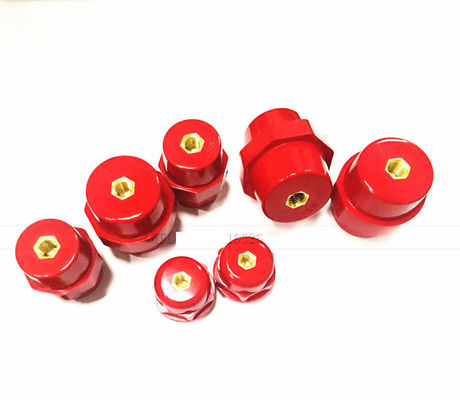

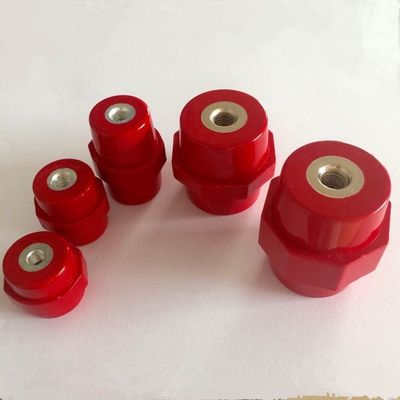

1. Size: SM25,SM30,SM35,SM40,SM45,SM51,SM60,SM76 2.Material:DMC 3.Tensile strength:600LBS
1. Description
1) Made of bulk molding compound, unsaturated polymer with fiber glas
2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
|
Values |
Style |
|||||
|
SM-25 |
SM-30 |
SM-35 |
SM-40 |
SM-51 |
SM-76 |
|
|
Temsile strength(lbs) |
500 |
550 |
600 |
650 |
1000 |
1500 |
|
Torgue strength(fr lba) |
6 |
8 |
10 |
10 |
20 |
40 |
|
Voltage withstand(kv) |
6 |
8 |
10 |
12 |
15 |
25 |
|
Screw(mm) |
6 |
8 |
8 |
8 |
8 |
10 |
|
Weight(g) |
28 |
44 |
50 |
56 |
83 |
233 |
Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.
The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.
|
type |
diameter |
size |
GW/pcs |
QTY/box |
|
SM25 |
M6 |
25X30 |
0.04kg |
20 |
|
SM30 |
M6 |
30X32 |
0.04kg |
20 |
|
SM30 |
M8 |
30X32 |
0.04kg |
20 |
|
SM35 |
M6 |
35X32 |
0.06kg |
10 |
|
SM35 |
M8 |
35X32 |
0.06kg |
10 |
|
SM40 |
M8 |
40X40 |
0.09kg |
10 |
|
SM51 |
M8 |
51X36 |
0.12kg |
10 |
|
SM76 |
M10 |
76X50 |
0.15kg |
10 |
|
SM7105 |
M6 |
38X32 |
0.07kg |
10 |
|
SM7105 |
M8 |
38X32 |
0.07kg |
10 |
|
SM7110 |
M8 |
45X42 |
0.1kg |
10 |
|
SM7110 |
M10 |
45X42 |
0.1kg |
10 |
|

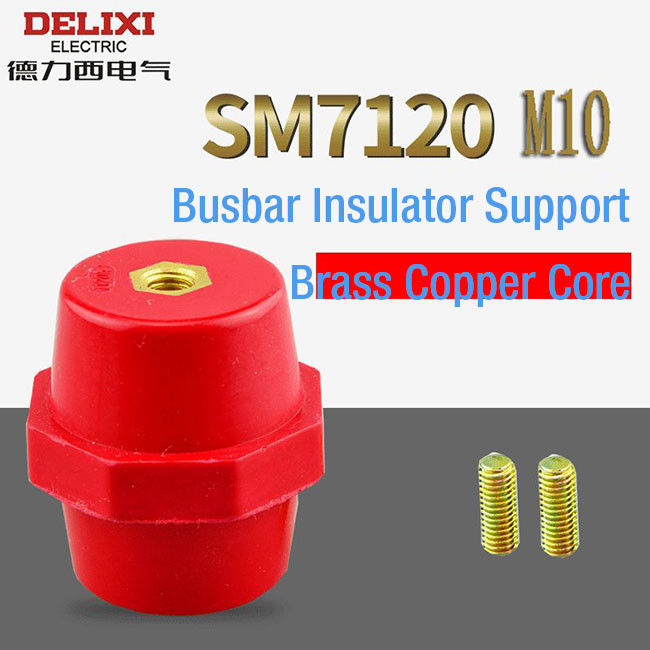

SM7120X50 |
M10 |
51X51 |
0.18kg |
10 |
|
SM7120X60 |
M10 |
60X54 |
0.2kg |
10 |
Product Highlights
