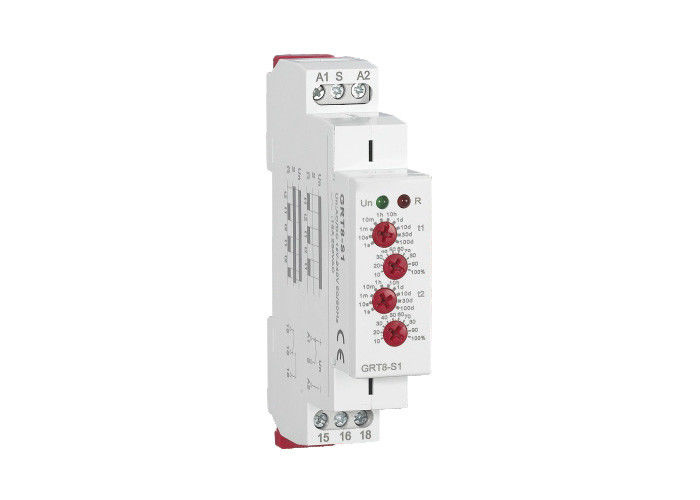

RT8-S1 Modular Timing Relays AC/DC12-240V
Product Details
| Product Name: | DIN Rail Mount Time Relay | Type: | Time Delay Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
surge protection device,automation electrical controls |
||
Product Description
RT8-S1 AC/DC12-240V Adjustable Protective Time Relay Cycler 12v 24v 48 volt DC Relay Price
General
Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control,
circulating pumps, noon signs, etc.
Function Features
-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /
10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
Electrical features

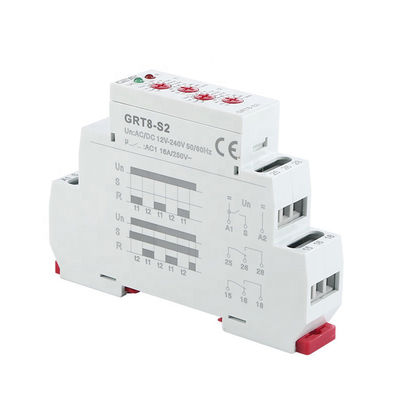

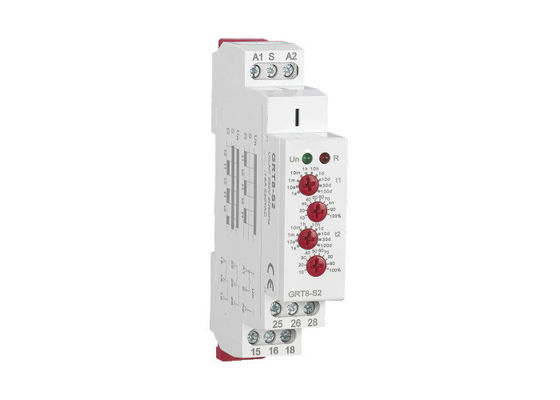

| Model NO | GRT8-S1 OR GRT8-S2 |
| Function | Asymmetric Cycler Timer Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 1 SPDT OR 2 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
Product Highlights
RT8-S1 AC/DC12-240V Adjustable Protective Time Relay Cycler 12v 24v 48 volt DC Relay Price General Applications -It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc. Function Features -2 time functions: -Cycler beginning with pulse ...
