AC230V Modular Timing Relays
Product Details
| Product Name: | DIN Rail Mount Time Relay | Type: | Time Delay Relay |
|---|---|---|---|
| Control Volt: | DC/AC24, AC230V | Acceossories: | Available |
| Highlight |
surge protection device,industrial control transformer |
||
Product Description

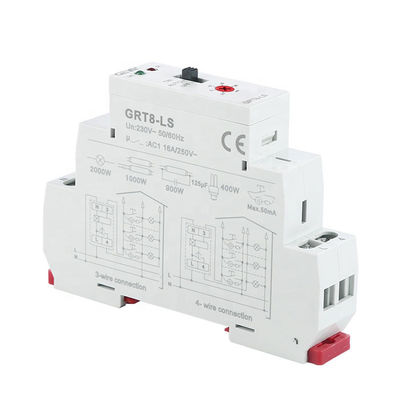

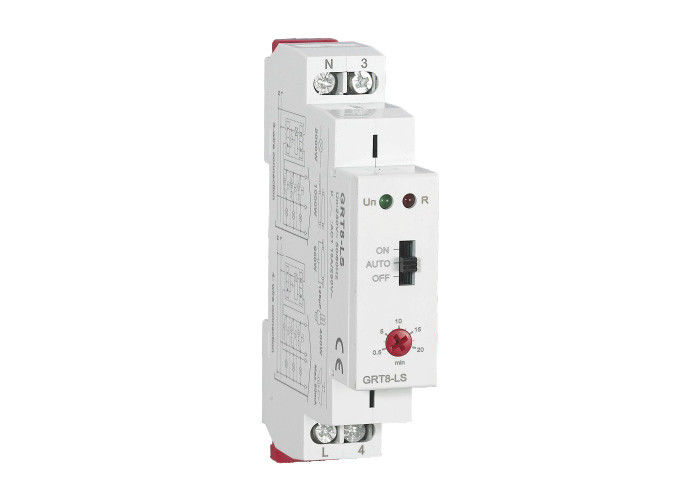

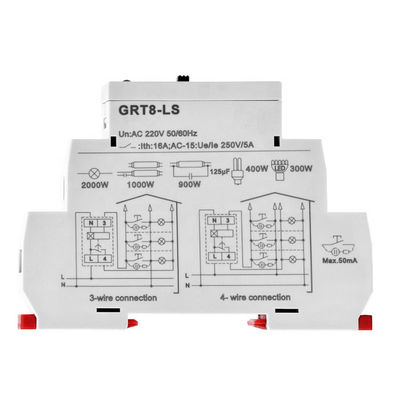

RT8-LS AC230V Multifunction Staircase Light Time Switch Staircase Relay Electronic 1SPST 16A
General
Applications
-It is used for delayed switching of lights in the corridors, entrances, stairways,
halls or for delayed fi nish of fans (WC, bathroom, etc.).
Function Features

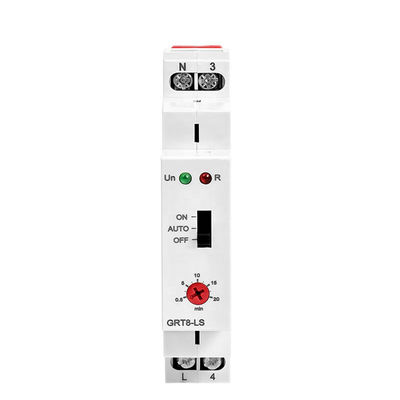

-Operating system switch:
ON - output is constantly ON .
AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF - output is constantly OFF.
-Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
| Model NO | GRT8-LS |
| Function | Staircase Switch |
| Voltage Range | AC230V |
| Output | 1 SPST |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
Product Highlights
RT8-LS AC230V Multifunction Staircase Light Time Switch Staircase Relay Electronic 1SPST 16A General Applications -It is used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed fi nish of fans (WC, bathroom, etc.). Function Features -Operating system switch: ...
