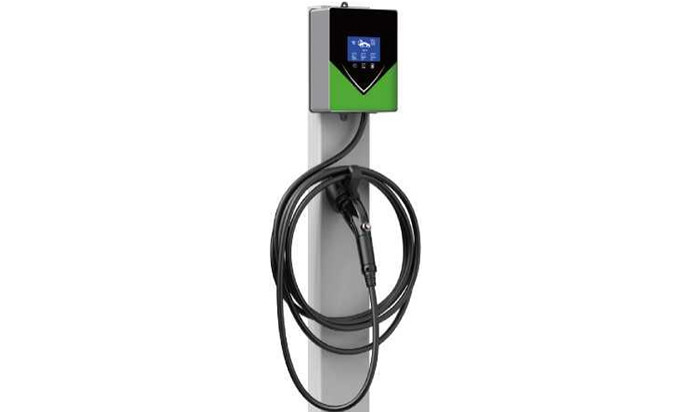

Type 1 Wai I Box Electric EV Charger 7kw / 12kw / 22kw Compatible
Product Details
| Model: | EV Charging Cable | Voltage: | 220V-480 |
|---|---|---|---|
| Power: | 3.5kw/7kw | Operating Temperature: | -20-55℃ |
| Output Current: | 48A/32A | Application: | AC Home Charging |
| Total Length: | 0.96 Inch LCD Screen | Wire Material: | Plug And Play |
| Highlight |
Electric EV Charger 7kw,CE Electric Compatible EV Charger,22kw Electric EV Charger |
||
Product Description
Type 1 Wai I Box EV charger 7kw/12kw/22kw Compatible With Various Brands
Type 1 Wai I Box EV Charger can be widely used in the charging needs of electric vehicles using Type 1 plugs. Here are some application scenarios:
HOME CHARGING: The Type 1 Wai I Box EV Charger is suitable for charging personal electric vehicles at home. You can install the charger in your home garage or parking space to keep your electric car charged anytime.
Commercial charging stations: Commercial places such as shopping centers, hotels, restaurants, etc. can install Type 1 Wai I Box EV Charger as charging facilities to provide charging services for customers and employees.
Public charging stations: Public charging stations are places that provide charging services for the public, such as parking lots, gas stations, public buildings, etc. The Type 1 Wai I Box EV Charger can be used as an option for public charging stations to meet the charging needs of electric vehicles using Type 1 plugs.
Public transportation charging: Some cities' public transportation systems use electric vehicles as vehicles, and the Type 1 Wai I Box EV Charger can be used to provide charging services for these public transportation vehicles.
In conclusion, the Type 1 Wai I Box EV Charger can be applied in multiple scenarios such as homes, commercial places, and public charging stations, providing a convenient charging solution for electric vehicles using Type 1 plugs.
Technical paramete:
The product complies with low-voltage directive 2014/35/EU, IEC61,851-1:2019
IP67, weather proof; Leakage current protection; Impact resistance
Charging state and operation error are indicated by LED
| Technical parameter | |||||
| Model | EV32A04CN | EV32A05CN | EV32A04EU | EV32A05EU | EV32A03US |
| Adjustable Current | 32A( 16/20/24/32A) | 32A( 16/20/24/32A) | 32A ( 16/20/24/32 A) | 32A ( 16/20/24/32 A) | 48A ( 16/20/24/32/40 A) |
| Power | 7KW Single Phase | 22KW Three Phase | 7KW Single Phase | 22KW Three Phase | 12KW |
| Cable Specification | 3*6mm2+2*0.75mm2 TPE OD: 15.7 |
5*6mm2+2*0.75mm2 TPE OD :20.5 |
3*6mm2+2*0.5mm2 TPU OD: 13.5 | 5*6mm2+2*0.5mm2 TPU OD: 16.8 | 2*9AWG+ 10AWG+2*18AWG TPE OD: 16.5 |
| Voltage | 220V | 380V | 220V | 380V-480V | 1 10V-250V |
| Charging Interface | GB/T Plug +5M cable or custom | GB/T Plug +5M cable or custom | Type 2 Plug +5M cable or custom | Type 2 Plug +5M cable or custom | Type 1 Plug +5M cable or custom |
| Case Material | Aluminum + Thermoplastic (flame retardant grade UL94-0) | ||||
| User Interface |
LED indicator+LCD display(4.3 inch) |
||||
| Standard |
EN IEC 61851- 1:2019, EN IEC 61000-6- 1:2019, EN IEC 61000-6-2 :2019 EN IEC 61000-6-32021 , EN IEC 61000-6-4 :2019 |
||||
| Product Dimensions | Control Box: 260*202*80mm | ||||
| Degree of Protection |
Charging plug: IP67 Control box: IP54 |
||||
|
Operating Temperature |
-40°C to 80°C | ||||
| Product Performance |
Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection, Over temperature protection (85°C). Lightning protection. Short circuit protection, flame retardant. |
||||
8 SAFETY PROTECTION SYSTEMS:
-Factory direct sales, global supply, welcome to our factory for business negotiation
- Own the software (single chip microcomputer) development of the core technology PCBA board
-True dual temperature control technology (plug + control box), efficient and continuous work, temperature control is one of the most important indexes of the charging gun
- Strong and weak electricity separation design on the power board and software board (double board design, strong signal transmission, no interference)
-Real lightning protection design
- Customizable: charging gun color, wire color, wire length, appearance, please consult customer service for details
Production and testing equipment:
Other Options:
Our Service:
1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.
Product Highlights
Type 1 Wai I Box EV charger 7kw/12kw/22kw Compatible With Various Brands Type 1 Wai I Box EV Charger can be widely used in the charging needs of electric vehicles using Type 1 plugs. Here are some application scenarios: HOME CHARGING: The Type 1 Wai I Box EV Charger is suitable for charging personal ...
