7kw Level 2 Commercial Charging Station Wall Mounted Fast

7kw Level 2 Commercial Charging Station Wall Mounted Fast

  • 7kw Level 2 Commercial Charging Station Wall Mounted Fast
  • 7kw Level 2 Commercial Charging Station Wall Mounted Fast
7kw Level 2 Commercial Charging Station Wall Mounted Fast
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: CE
Model Number: FE
Payment & Shipping Terms:
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order
Payment Terms: T/T, Western Union
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Number Of Charging Interfaces: One Pile With One Charge Location: Private Use And Public Use
Installation: Wall/Groundmounting Customization: Available
Product Name: EV Charger Station Output Power: 7KW / 11KW / 22KW
Cable Length: 5 Meters, Support Custom Advantage: APP Control RFID Card Optional With Ocpp
Custom Service: Support Customized Colors, Logos, And Packaging Specification: Indoor & Outdoor Use
Charge Method: Normal Charge Application: Electric Car Charging
IP Grade: IP 54 Interface Standard: Type 2
Highlight:

7kw commercial charging station

,

wall mounted fast commercial charging station

,

level 2 electric ev charging station





We support ev charging station with different power according to customer requirements

Model FE-A07B FE-A11B FE-A22B









Electrical

specification

 Power supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated voltage 220V AC±15% 380V AC±20% 380V AC±20%
Frequency 50Hz 50Hz 50Hz
Rated current 32A(Max) 16A(Max) 32A(Max)
Rated power 7kW 11KW 22KW
Recommend
power supply cable		 3x6mm², copper 5x4mm², copper 5x6mm², copper
Charging plug IEC62196-2, Type
2, 1-phase plug
+5m cable		 IEC62196-2, Type
2, 3-phase plug
+5m cable		 IEC62196-2, Type
2, 3-phase plug
+5m cable






Functional

description

 Start mode Plug-and-play/RFID card/APP*
Display screen 3.5-inch LCD screen (display current, voltage, power, charging time, state& fault information, etc.)
LED indicator LED strip indicate 5 statuses (see details in LED indicator description)
Communication interface WIFI/Ethernet/4G(optional)
Communication protocol OCPP 1.6J
Safety protection Emergency stop button, surge protection, over/under voltage, over current, ground protection, leakage protection, over temperature
RCD built-in Yes, Type B RCD (AC 30mA+DC 6mA) built-in




Ambient

conditions

 Work altitude ≤ 2000 m
Storage temperature -30 ~ +85ºC
Work temperature -20 ~ +50ºC
Operating humidity 5%-95% no condensation
Installation location Indoor or outdoor, good ventilation, no flammable, explosive gases
Cooling Natural cooling




Mechanical

parameters

 Net weight <5kg <5.5kg <5.5kg
Unite size H=360mm, W=240mm, D=90mm
Post height 1500m
Mounting Wall-mounted/ground-mounted(mounting post is optional)
IP grade IP 54
Material Metal plate shell with powder coating
*Note: Customers provide the APP which support OCPP 1.6J.

7kw Level 2 Commercial Charging Station Wall Mounted Fast 0

Product Description

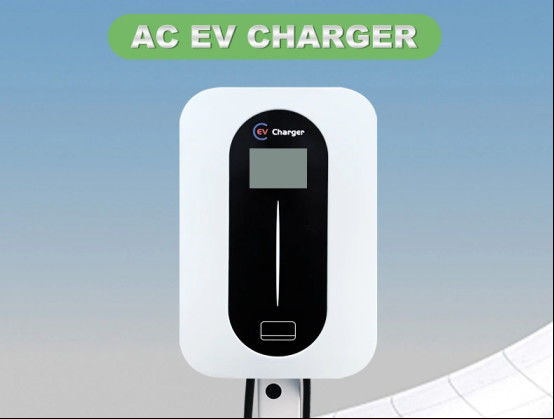

7kw Level 2 Commercial Charging Station Wall Mounted Fast 1

7kw Level 2 Commercial Charging Station Wall Mounted Fast 2

7kw Level 2 Commercial Charging Station Wall Mounted Fast 3

7kw Level 2 Commercial Charging Station Wall Mounted Fast 4

7kw Level 2 Commercial Charging Station Wall Mounted Fast 5

7kw Level 2 Commercial Charging Station Wall Mounted Fast 6

7kw Level 2 Commercial Charging Station Wall Mounted Fast 7

7kw Level 2 Commercial Charging Station Wall Mounted Fast 8

PRODUCT APPLICATIONS

7kw Level 2 Commercial Charging Station Wall Mounted Fast 9
