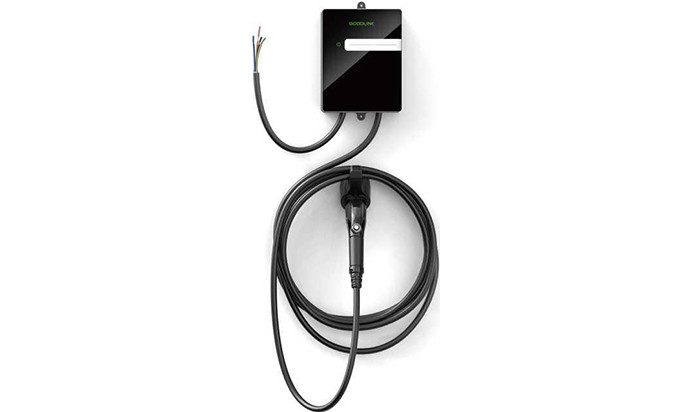

Smart EV Charger Wallbox Station 7KW /12KW/22KW 32A/48 With OCPP
Product Details
| Model: | EV Charging Cable | Voltage: | 220V-480 |
|---|---|---|---|
| Power: | 3.5kw/7kw | Operating Temperature: | -20-55℃ |
| Output Current: | 48A/32A | Application: | AC Home Charging |
| Total Length: | 0.96 Inch LCD Screen | Wire Material: | Plug And Play |
| Highlight |
EV Charger Wallbox Station 7KW,EV Charging Station with OCPP,32A EV Charger Wallbox Station |
||
Product Description
7KW /12KW/22KW 32A/48 Smart EV Charger Wallbox EV Charging Station with OCPP
Wallbox with OCPP is a wall-mounted electric vehicle charging pile equipped with the Open Charge Point Protocol (OCPP). It has the following features and applications:
OCPP Compatibility: Wallbox with OCPP can be connected with various charging management systems and networks that support OCPP protocol to realize intelligent management and monitoring of charging piles. OCPP is an open industry-standard charging protocol that enables communication between charging piles and charging management systems.
Intelligent management: By connecting to the charging management system, Wallbox with OCPP can realize the functions of remote monitoring and control of charging piles. The charging management system can monitor the status of charging piles, real-time power, charging speed and other information, and perform data analysis and reporting to provide maintenance, management and user support.
Data collection and analysis: Wallbox with OCPP can collect data during the charging process, such as charging time, charging capacity, etc. These data can be used for energy consumption analysis, charging history records, etc. Through data analysis, users can better understand charging behavior and efficiency, optimize and plan.
Enterprise and commercial applications: Wallbox with OCPP is suitable for various scenarios such as enterprises, commercial places and public charging stations. Enterprises can provide employees and customers with electric vehicle charging services by installing these charging piles, and manage and charge for them.
Sharing economy model: OCPP-based Wallbox can support the sharing economy model, allowing car owners and charging pile owners to share charging services. Using the OCPP protocol enables a seamless shared charging experience with proper billing and payment.
In short, Wallbox with OCPP is a smart wall-mounted electric vehicle charging pile with OCPP compatibility, which supports remote monitoring and management, data collection and analysis, and is suitable for various application scenarios such as enterprises, businesses, and shared charging services.
Technical paramete:
The product complies with low-voltage directive 2014/35/EU, IEC61,851-1:2019
IP67, weather proof; Leakage current protection; Impact resistance
Charging state and operation error are indicated by LED
| Technical parameter | |||||
| Model | EV32A06CN | EV32A07CN | EV32A06EU | EV32A07EU | EV32A04US |
| Adjustable Current | 32A( 16/20/24/32A) | 32A( 16/20/24/32A) | 32A ( 16/20/24/32 A) | 32A ( 16/20/24/32 A) | 48A ( 16/20/24/32/40 A) |
| Power | 7KW Single Phase | 22KW Three Phase ( | 7KW Single Phase |
22KW Three Phase |
12 KW |
| Cable Specification | 3*6mm2+2*0.75mm2 TPE OD: 15.7 | 5*6mm2+2*0.75mm2 TPE OD :20.5 | 3*6mm2+2*0.5mm2 TPU OD: 13.5 | 5*6mm2+2*0.5mm2 TPU OD: 16.8 | 2*9AWG+ 10AWG+2*18AWG TPE OD: 16.5 |
| Voltage | 220V | 380V | 220V | 380V-480V | 1 10V-250V |
| Charging Interface | GB/T Plug +5M cable or custom | GB/T Plug +5M cable or custom | Type 2 Plug +5M cable or custom | Type 2 Plug +5M cable or custom | Type 1 Plug +5M cable or custom |
| Case Material | Aluminum + Thermoplastic (flame retardant grade UL94-0) | ||||
| User Interface |
LED Indicator |
||||
| Standard |
EN IEC 61851- 1:2019 , EN IEC 61000-6- 1:2019 , EN IEC 61000-6-2 :2019 EN IEC 61000-6-32021 , EN IEC 61000-6-4 :2019 |
||||
| Product Dimensions | Control Box: 260*202*80mm | ||||
| Degree of Protection |
Charging plug: IP67 Control box: IP54 |
||||
|
Operating Temperature |
-40°C to 80°C | ||||
|
Product Performance |
Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection, Over temperature protection (85°C). Lightning protection. Short circuit protection, flame retardant. |
||||
8 SAFETY PROTECTION SYSTEMS:
-Factory direct sales, global supply, welcome to our factory for business negotiation
- Own the software (single chip microcomputer) development of the core technology PCBA board
-True dual temperature control technology (plug + control box), efficient and continuous work, temperature control is one of the most important indexes of the charging gun
- Strong and weak electricity separation design on the power board and software board (double board design, strong signal transmission, no interference)
-Real lightning protection design
- Customizable: charging gun color, wire color, wire length, appearance, please consult customer service for details
Production and testing equipment:
Other Options:
Our Service:
1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.
