Compact Installation AC Motor Contactor 115~620A AC-3 AC-1 24V 110V 230V 380V
Product Details
| Main Circuit Rating Current: | 9-95A | Electricity Type: | AC,AC/DC |
|---|---|---|---|
| Main Circuit Rating Voltage: | 600V,220V,380V,110V,24V | Number Of Pole: | 3,4 |
| Phase: | 3,1Phase | Frequency: | 50/60Hz |
| Product Name: | Ac Contactor CJX2N-D09,3 Pole Ac Contactor | Rated Current: | 95A,115-800A |
| Standard: | IEC60947,EN/IEC60947-4-1 | ||
| Highlight |
ac contactor switch,home ac contactor |
||
Product Description

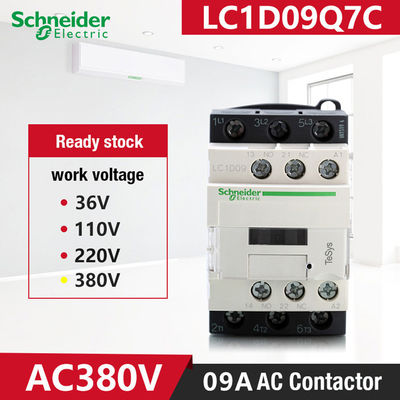

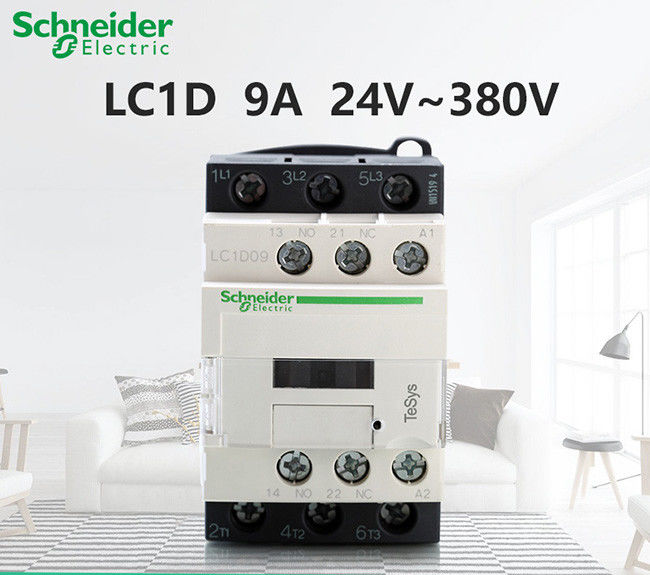

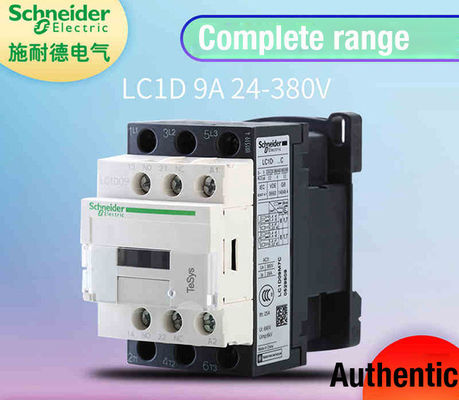

TeSys Schneider Electric LC1D AC Contactor 3P, 4P 9A~95A,115~620A,AC-3 AC-1 24V,110V,230V,380V etc.
Characteristic
TeSys D Green extends the TeSys D range with new electronic coils that reduce energy consumption by 80% compared to TeSys D standard AC or DC coils.
The TeSys D Green contactor model is reduced by 90% and the selection and maintenance is more convenient.
The TeSys D Green contactor works with the TeSys LR9D electronic overload relay to reduce heat generation and energy consumption by up to 50%.
• Current range 09~620A;
• AC, DC control coil is optional (DC coil to 38A);
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), EverLink terminal connection (40~65A) for customer installation;
• Product Certification: CCC, CE, CCS;
Advantage
• Compact installation
> Contactors to 38A and protection components are only 45mm wide
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 100 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength
• TeSysD 40-65A Everlink:
> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time
> Easy to maintain and save costs
| Product Series |
TeSys
|
|---|---|
| product name |
TeSys D
|
| product type |
Contactor
|
| Product short name |
LC1D
|
| Contactor application area |
Squirrel cage motor for switching on and off normal start
Applied to AC loads with a power factor greater than or equal to 0.95 |
| Use category |
AC-1
AC-3 AC-4 |
| Number of poles |
3P
|
| Power pole contact composition |
3 NO
|
| Rated working voltage [Ue] |
Power circuit: <= 300 V DC 25...400 Hz
Power circuit: <= 1000 V AC |
| Rated operating current [Ie] |
125 A 60 °C) on <= 440 V AC AC-1 for power supply circuits
95 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit |
| Motor power (kW) |
45 kW on 415...440 V AC 50/60 Hz (AC-3)
55 kW on 500 V AC 50/60 Hz (AC-3) 45 kW on 660...690 V AC 50/60 Hz (AC-3) 45 kW on 1000 V AC 50/60 Hz (AC-3) 15 kW on 400 V AC 50/60 Hz (AC-4) 25 kW on 220...230 V AC 50/60 Hz (AC-3) 45 kW on 380...400 V AC 50/60 Hz (AC-3) |
| Motor power HP (UL / CSA) |
20 hp on 200/208 V AC 50/60 Hz for 3-phase motors
7.5 hp on 115 V AC 50/60 Hz for 1-phase motors 15 hp on 230/240 V AC 50/60 Hz for 1-phase motors 25 hp on 230/240 V AC 50/60 Hz for 3-phase motors 60 hp on 460/480 V AC 50/60 Hz for 3-phase motors 60 hp on 575/600 V AC 50/60 Hz for 3-phase motors |
| Control loop characteristics |
AC on 50/60 Hz
|
| Control loop voltage |
230 V AC 50/60 Hz
|

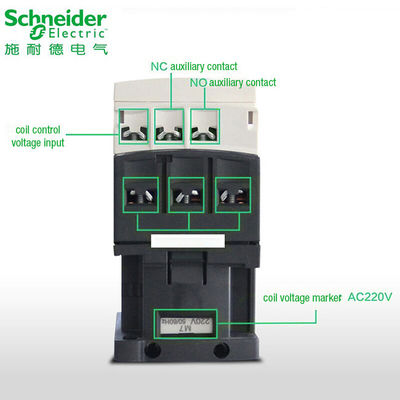

| Auxiliary contact type |
1 NO + 1 NC
|
| Rated impulse withstand voltage [Uimp] |
8 kV in accordance with IEC 60947
|
| Overvoltage category |
III
|
| Conventional heating current [Ith] |
10 A on <60 °C for signal circuit
125 A on <60 °C for power supply circuit |
| Rated turn-on capability [Irms] |
140 A AC suitable signal circuit in accordance with IEC 60947-5-1
250 A DC suitable signal loop in accordance with IEC 60947-5-1 1100 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
| Rated breaking capacity |
1100 A on 440 V applicable power supply circuit in accordance with IEC 60947
|
| Rated short-time withstand current [Icw] |
1100 A on <40 °C - 1 s for power supply circuit
135 A on <40 °C - 10 minutes for power circuit 800 A on <40 °C - 10 s for power supply circuit 400 A on <40 °C - 1 minute for power circuit 100 A - 1 s for signal circuits 120 A - 500 ms Applicable signal loop 140 A - 100 ms for signal circuits |
| Fuses used with relays |
10 A gG Applicable signal circuit in accordance with IEC 60947-5-1
200 A gG on...<= 690 V with type 1 for power circuit 160 A gG on...<= 690 V with type 2 for power supply circuit |
| Average impedance |
0.8 mΩ - Ith 125 A 50 Hz for power supply circuits
|
| Rated insulation voltage [Ui] |
Power circuit: 600 V CSA certification
Power circuit: 600 V UL certification Power circuit: 1000 V in accordance with IEC 60947-4-1 Signal loop: 690 V in accordance with IEC 60947-1 Signal loop: 600 V CSA certified Signal circuit: 600 V UL certification |
| Electrical life |
1.2 kA2.s 95 A AC-3 Ue condition <= 440 V
1.3 kA2.s 125 A AC-1 Ue condition <= 440 V |
| Power consumption per pole |
12.5 W AC-1
7.2 W AC-3 |
| Safety cover |
band
|
| Installation method |
Base plate installation
Rail mounting |
| standard |
CSA C22.2 No 14
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
| certified product |
LROS (Lloyds register of shipping)
DNV GOST RINA CCC BV GL |
| Wiring ability |
Control circuit: Bolt fastening 2 Cable 1...2.5 mm2 cord
Control circuit: Bolt fastening 1 Cable 1...2.5 mm2 cord Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord without Control circuit: Bolt fastening 2 Cable 1...4 mm2 cord without Control circuit: Bolt fastening 1 Cable 1...4 mm2 hard wire without Control circuit: Bolt fastening 2 Cable 1...4 mm2 hard wire without Power circuit: Terminal 1 Cable 4...50 mm2 cord without Power circuit: Terminal 2 Cable 4...25 mm2 cord without Power circuit: Terminal 1 Cable 4...50 mm2 flexible cable Power circuit: Terminal 2 Cable 4...16 mm2 cord Power circuit: Terminal 1 Cable 4...50 mm2 Hard wire without Power circuit: Terminal 2 Cable 4...25 mm2 Hard wire without |
| Tightening torque |
Control circuit: 1.2 Nm Screwdriver with bolt Ø 6 flat
Control circuit: 1.2 Nm Screwdriver with No 2 Phillips screw Power circuit: 9 Nm through the terminal with a screwdriver Ø 6 - Ø 8 flat Power circuit: 9 Nm through terminal hex type 4 mm |
| Action time |
20...35 ms closed
6...20 ms break |
| Safety and reliability |
B10d = 1369863 Contactors with nominal load compliance in accordance with EN/ISO 13849-1
B10d = 20000000 mechanical load contactors comply with EN/ISO 13849-1 |
| Mechanical life |
4 kA2.s
|
| Maximum operating frequency |
3600 times / hour on ... <60 °C
|
Features
As the best selling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.
TeSys D contactors leverage over 100 years of experience and innovation to control your motors.
Specifications:
- AC & DC Coils 50/60 Hz available for whole range
- DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
- DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
- Various types of connection available:
- Screw clamp terminals
- Everlink (40 to 80 A)
- Spring terminals (9 to 38 A and on control terminal up to 65 A)
- Lugs terminals
- Faston terminal (9 to 12 A)
- High making and breaking capacity
- 1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
- Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1
- Up to 30 million mechanical operation cycles
- Electrical cycles up to 3600 cycles per hour at ambient temperature
- No derating up to 3000 m altitude
- Wide range of working temperature: -25°C to 60°C

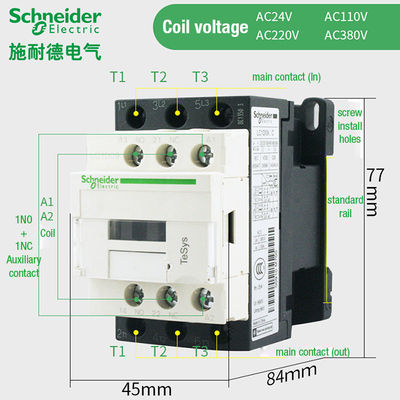

Dimensions: 4 width sizes available to cover all ratings
- 45 mm to 38 A
- 55 mm from 40 to 65 A
- 85 mm from 80 to 95 A
- 120 mm from 115 to 150 A
TeSys D benefits a wide range of accessories for:
- Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.
- Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.
- System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.
Benefits
TeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:
Safety
- Safe and long-lasting power connection with Everlink and spring terminals
- Suitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)
- Identification of safety chain with red cover and auxiliary contact
Efficiency
- Recognized high performance and quality solutions
- Outstanding breaking/making capacity up to 20 In
- Multistandard: IEC, UL, CCC, EAC, various Marine standards, etc.
- PLC direct connection
Continuity of service
- Certified type 1 and 2 coordination tables
- Worldwide availability of products and after-sales services
Applications
TeSys D contactors are primarily used in industry, infrastructure and building applications.
- TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA
- These contactors can be used to create motor starters for any type of application
