9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V

Product Details:

Place of Origin:	China
Brand Name:	Chint
Certification:	CE,CCC,CB etc.
Model Number:	NXC/CJX-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD10~USD98(~3P/95A), ~USD998(~3P/475A)
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days or bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	1,000pcs/month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (160)

Ultrafiltration Membrane Modules (72)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (144)

Moon Balloon Light (145)

Tripod LED Balloons (122)

Inflatable Light Tower (76)

Terminal Block Accessories (6)

Detailed Product Description

Main Circuit Rating Current:	9-95A	Electricity Type:	AC,AC/DC
Main Circuit Rating Voltage:	600V,220V,380V,110V,24V	Number Of Pole:	3,4
Phase:	3,1Phase	Frequency:	50/60Hz
Product Name:	Ac Contactor CJX2N-D09,3 Pole Ac Contactor	Rated Current:	95A
Standard:	IEC60947,EN/IEC60947-4-1
Highlight:	ac contactor switch , electrical control equipment

Chint NXC (CJX2) AC Contactor 3P, 4P 9A~95A 1810, 2510, 3210, 6511, AC-3 AC-1 Coil Voltage 24V,110V,230V,380V

characteristic
The CJX2 expands the CJX2 range with new electronic coils that reduce energy consumption by 80% compared to standard AC or DC coils.
The CJX2 contactor model is reduced by 90%, making it easier to select and maintain.
The CJX2 contactor is used in conjunction with an electronic overload relay to reduce heat generation and energy consumption by up to 50%.
• Current range 09~620A;
• AC, DC control coil is optional (DC coil to 38A);
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), terminal connection (40~65A), convenient for customer installation;
• Product Certification: CCC, CE, CCS;

Advantage
• Compact installation
> Contactors to 38A and protection components are only 45mm wide
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength
CJX2 40-65A:
> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time

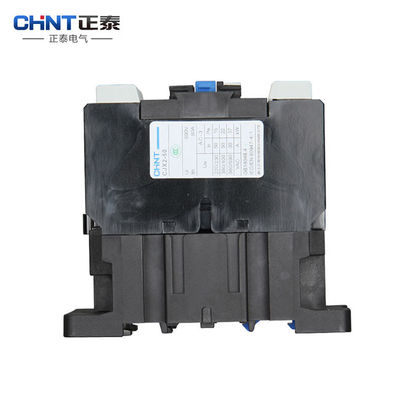

9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V 0

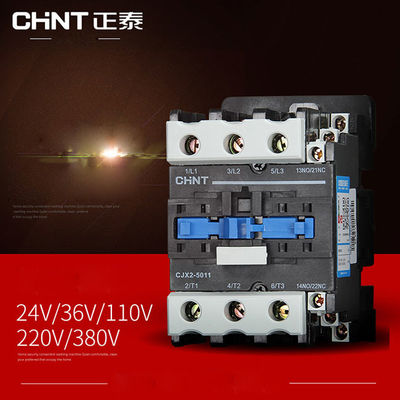

9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V 1
> Easy to maintain and save costs

**main information**
Product Series	CJX2
product name	AC Contactor
product type	Contactor
Product short name	CJX2
Contactor application area	Applied to AC loads with a power factor greater than or equal to 0.95 Squirrel cage motor for switching on and off normal start
Use category	AC-3 AC-1 AC-4
Number of poles	3P
Power pole contact composition	3 NO
Rated working voltage [Ue]	Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC
Rated operating current [Ie]	18 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit 32 A 60 °C) on <= 440 V AC AC-1 for power supply circuit
Motor power (kW)	4 kW on 220...230 V AC 50/60 Hz (AC-3) 7.5 kW on 380...400 V AC 50/60 Hz (AC-3) 9 kW on 415...440 V AC 50/60 Hz (AC-3) 10 kW on 500 V AC 50/60 Hz (AC-3) 10 kW on 660...690 V AC 50/60 Hz (AC-3) 4 kW on 400 V AC 50/60 Hz (AC-4)
Motor power HP (UL / CSA)	1 hp on 115 V AC 50/60 Hz for 1-phase motors 3 hp on 230/240 V AC 50/60 Hz for 1-phase motors 5 hp on 200/208 V AC 50/60 Hz for 3-phase motors 5 hp on... 230/240 V AC 50/60 Hz for 3-phase motors 10 hp on 460/480 V AC 50/60 Hz for 3-phase motors 15 hp on 575/600 V AC 50/60 Hz for 3-phase motors
Control loop characteristics	AC on 50/60 Hz
Control loop voltage	230 V AC 50/60 Hz
Auxiliary contact type	1 NO + 1 NC
Rated impulse withstand voltage [Uimp]	6 kV in accordance with IEC 60947
Overvoltage category	III
Conventional heating current [Ith]	10 A on <60 °C for signal circuit 32 A on <60 °C for power supply circuit
Rated turn-on capability [Irms]	140 A AC suitable signal circuit in accordance with IEC 60947-5-1 250 A DC suitable signal loop in accordance with IEC 60947-5-1 300 A on 440 V applicable power supply circuit in accordance with IEC 60947
Rated breaking capacity	300 A on 440 V applicable power supply circuit in accordance with IEC 60947
Rated short-time withstand current [Icw]	145 A on <40 °C - 10 s for power supply circuit 240 A on <40 °C - 1 s for power supply circuit 40 A on <40 °C - 10 minutes for power circuit 84 A on <40 °C - 1 minute for power circuit 100 A - 1 s for signal circuits 120 A - 500 ms Applicable signal loop 140 A - 100 ms for signal circuits
Fuses used with relays	10 A gG Applicable signal circuit in accordance with IEC 60947-5-1 50 A gG on...<= 690 V with type 1 for power supply circuit 35 A gG on ...<= 690 V with type 2 for power supply circuit
Average impedance	2.5 mΩ - Ith 32 A 50 Hz for power supply circuits
Rated insulation voltage [Ui]	Power circuit: 690 V in accordance with IEC 60947-4-1 Power circuit: 600 V CSA certification Power circuit: 600 V UL certification Signal loop: 690 V in accordance with IEC 60947-1 Signal loop: 600 V CSA certified Signal circuit: 600 V UL certification
Electrical life	1.65 kA2.s 18 A AC-3 Ue condition <= 440 V 1 kA2.s 32 A AC-1 Ue condition <= 440 V
Power consumption per pole	2.5 W AC-1 0.8 W AC-3
Safety cover	band
Installation method	Rail mounting Base plate installation
standard	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508

9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V 2

9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V 3

9A~95A AC Motor Contactor 1810 2510 3210 6511 AC-3 AC-1 Coil Voltage 24V 110V 230V 380V 4
