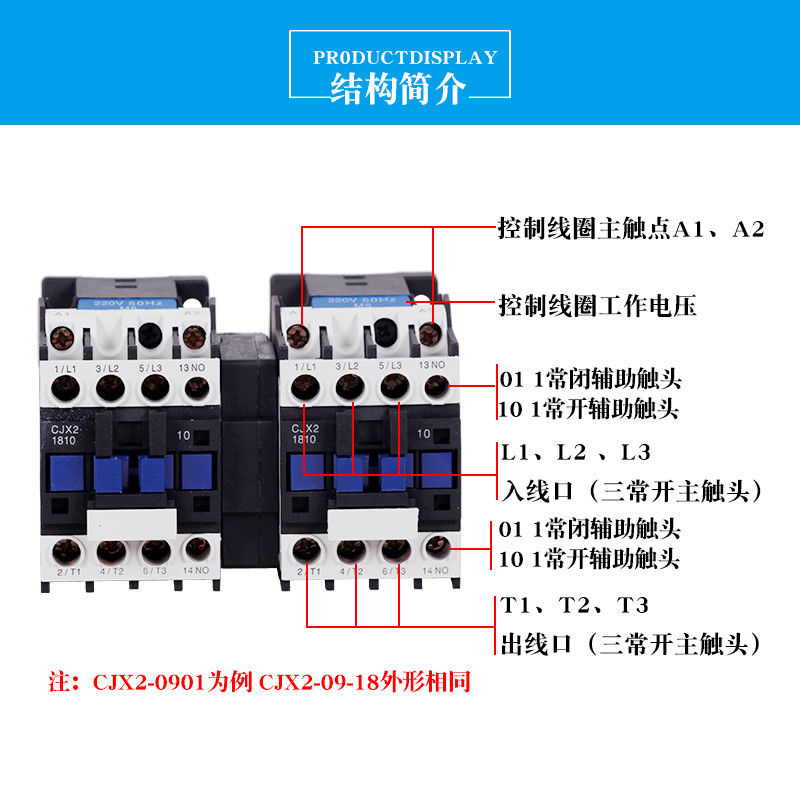

CJX2-N AC Reversing Contactor , 3 Phase Reversing Contactor 3P 4P 9A~95A AC-3 AC-1
Product Details
| Main Circuit Rating Current: | 9-95A | Electricity Type: | AC,AC/DC |
|---|---|---|---|
| Main Circuit Rating Voltage: | 600V,220V,380V,110V,24V | Number Of Pole: | 3,4 |
| Phase: | 3,1Phase | Frequency: | 50/60Hz |
| Product Name: | Ac Contactor CJX2N-D09,3 Pole Ac Contactor | Rated Current: | 95A |
| Standard: | IEC60947,EN/IEC60947-4-1 | ||
| Highlight |
ac contactor switch,electrical control equipment |
||
Product Description
Chint CJX2-N AC Reversing Contactor 3P, 4P 9A~95A 1810, 2510, 3210, 6511, AC-3 AC-1 Coil Voltage 24V,110V,230V,380V
characteristic
• Current range 09~95A;
• AC, DC control coil is optional (DC coil to 38A);
• Different types of starters are available: standard motor start contactors, reversible contactors, star-delta starters, autotransformer starters, etc.
• Optional connection: bolt connection (09~620A), ring terminal connection (09~38A), terminal connection (40~65A), convenient for customer installation;
• Product Certification: CCC, CE, CCS;
Advantage
• Compact installation
> Contactors to 38A and protection components are only 45mm wide
> Surge suppressor installation requires no tools and can be inserted directly into the contactor without taking up more space
> Reversible contactor is only 90mm wide, mechanical interlocking does not take up extra space, installation takes almost no time
> Starter components provide pre-wired modules for quick and easy assembly
• Highly integrated
> to 100A contactor integration 1 normally open / 1 normally closed auxiliary contact
> DC coil with built-in bidirectional suppression diode
> Reversible contactor group with built-in bidirectional suppression diode
• Safe and reliable
> The main circuit and control circuit of the control and protection components are clearly distinguished
> Mirrored contact design that meets safety standards, ensuring 10 million reliable actions
> Protective cover prevents accidental contact of the contactor
• outstanding quality
> DC coils have a wide range of control voltages (0.7~1.25Uc)
> Strong earthquake resistance
> lower noise
> Increased terminal strength
CJX2 40-65A:
> Permanent torque, reliable installation
> Compact and space saving
> Easy to install, saves time
> Easy to maintain and save costs
| Product Series |
NC
|
|---|---|
| product name |
Contactor
|
| product type |
Reversing contactor
|
| Product short name |
CJX2-N
|
| Contactor application area |
Applied to AC loads with a power factor greater than or equal to 0.95
Squirrel cage motor for switching on and off normal start |
| Use category |
AC-1
AC-3 |
| Equipment introduction |
Pre-assembled with reversible power supply busbar
|
| Number of poles |
3P
|
| Power pole contact composition |
3 NO
|
| Rated working voltage [Ue] |
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC |
| Rated operating current [Ie] |
25 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit
40 A 60 °C) on <= 440 V AC AC-1 for power supply circuits |
| Motor power (kW) |
5.5 kW on 220...230 V AC 50/60 Hz
11 kW on 380...400 V AC 50/60 Hz 11 kW on 415...440 V AC 50/60 Hz 15 kW on 500 V AC 50/60 Hz 15 kW on 660...690 V AC 50/60 Hz |
| Motor power HP (UL / CSA) |
3 hp on 230/240 V AC 50/60 Hz for 1-phase motors
5 hp on 200/208 V AC 50/60 Hz for 3-phase motors 2 hp on 115 V AC 50/60 Hz for 1-phase motors 7.5 hp on 230/240 V AC 50/60 Hz for 3-phase motors 15 hp on 460/480 V AC 50/60 Hz for 3-phase motors 20 hp on 575/600 V AC 50/60 Hz for 3-phase motors |
| Control loop characteristics |
AC on 50/60 Hz
|
| Control loop voltage |
220 V AC 50/60 Hz
|
| Auxiliary contact type |
1 NO + 1 NC
|
| Rated impulse withstand voltage [Uimp] |
6 kV in accordance with IEC 60947
|
| Overvoltage category |
III
|
| Conventional heating current [Ith] |
10 A on <60 °C for signal circuit
40 A on <60 °C for power supply circuit |
| Rated turn-on capability [Irms] |
140 A AC suitable signal circuit in accordance with IEC 60947-5-1
250 A DC suitable signal loop in accordance with IEC 60947-5-1 450 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
| Rated breaking capacity |
450 A on 440 V applicable power supply circuit in accordance with IEC 60947
|
| Rated short-time withstand current [Icw] |
50 A on <40 °C - 10 minutes for power circuit
120 A on <40 °C - 1 minute for power circuit 240 A on <40 °C - 10 s for power supply circuit 380 A on <40 °C - 1 s for power supply circuit 100 A - 1 s for signal circuits 120 A - 500 ms Applicable signal loop 140 A - 100 ms for signal circuits |
| Fuses used with relays |
10 A gG Applicable signal circuit in accordance with IEC 60947-5-1
63 A gG on ...<= 690 V with type 1 for power supply circuit 40 A gG on ...<= 690 V with type 2 for power supply circuit |
| Average impedance |
2 mΩ - Ith 40 A 50 Hz for power supply circuits
|
| Rated insulation voltage [Ui] |
690 V complies with IEC 60947-4-1
600 V CSA certification 600 V UL certification 690 V in accordance with IEC 60947-1 |
| Electrical life |
1.65 kA2.s 25 A AC-3 Ue condition <= 440 V
1.4 kA2.s 40 A AC-1 Ue condition <= 440 V |
| Power consumption per pole |
1.25 W AC-3
3.2 W AC-1 |
| Safety cover |
band
|
| Interlock type |
mechanical
|
| Installation method |
Rail mounting
Base plate installation |
| Standards compliant |
EN 60947-5-1
IEC 60947-4-1 IEC 60947-5-1 EN 60947-4-1 |
| certified product |
CCC
|
| Wiring ability |
Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord without
Control circuit: Bolt fastening 2 Cable 1...4 mm2 cord without Control circuit: Bolt fastening 1 Cable 1...4 mm2 cord Control circuit: Bolt fastening 2 Cable 1...2.5 mm2 cord Control circuit: Bolt fastening 1 Cable 1...4 mm2 hard wire without Control circuit: Bolt fastening 2 Cable 1...4 mm2 hard wire without Power circuit: Bolt fastening 1 Cable 2.5...10 mm2 cord without Power circuit: Bolt fastening 2 Cable 2.5...10 mm2 cord without Power circuit: Bolt tightening 1 Cable 1...10 mm2 cord Power circuit: bolt fastening 2 cable 1.5...6 mm2 cord Power circuit: bolt fastening 1 cable 1.5...10 mm2 hard wire without Power circuit: Bolt fastening 2 Cable 2.5...10 mm2 hard wire without |
| Tightening torque |
Control circuit: 1.7 Nm Screwdriver with bolt Ø 6 flat
Control circuit: 1.7 Nm Screwdriver with No 2 Phillips screw Power circuit: 2.5 Nm Screwdriver with bolt Ø 6 flat Power circuit: 2.5 Nm Screwdriver with No 2 Phillips screw |
| Action time |
12...22 ms closed
4...19 ms break |
| Safety and reliability |
B10d = 1369863 Contactors with nominal load compliance in accordance with EN/ISO 13849-1
B10d = 20000000 mechanical load contactors comply with EN/ISO 13849-1 |
| Mechanical life |
15 kA2.s
|
| Maximum operating frequency |
3600 times / hour on ... <60 °C
|
| Surge suppression module |
No built-in surge suppression module
|
|---|---|
| Control voltage limit |
Release: 0.3...0.6 Uc on 50/60 Hz 60 °C)
Operation: 0.8...1.1 Uc on 50 Hz 60 °C) Operation: 0.85...1.1 Uc on ... 60 Hz 60 °C) |
| (~50Hz pull-in) power consumption (VA) |
70 VA 60 Hz 0.75 20 °C)
70 VA 50 Hz 0.75 20 °C) |
| (~50Hz hold) power consumption (VA) |
7.5 VA 60 Hz 0.3 20 °C)
7 VA 50 Hz 0.3 20 °C) |
| Heat dissipation |
2...3 W on 50/60 Hz
|
| Auxiliary contact type |
Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1
Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1 |
| Signal loop frequency |
25...400 Hz
|
| Minimum switching current [Imin] |
5 mA suitable signal loop
|
| Minimum switching voltage |
17 V for signal circuit
|
| No overlap time |
1.5 ms between power loss NC and NO contact
1.5 ms between the NC and NO contacts |
| Insulation resistance |
> 10 MΩ for signal circuits
|
| IP protection level |
IP20 front panel complies with IEC 60529
|
|---|---|
| Protective measures |
TH conforms to IEC 60068-2-30
|
| Pollution level |
3
|
| Operating temperature |
-5...60 °C
|
| Storage ambient temperature |
-60...80 °C
|
| Ambient air temperature |
-40...70 °C (allowed under Uc)
|
| Working elevation |
3000 m without
|
| Refractory and resistant to abnormal high temperatures |
850 °C in accordance with IEC 60695-2-1
|
| Flame retardant |
V1 complies with UL 94
|
| Shock and vibration resistance |
Seismic performance contacts open: 2 gn (5...300 Hz)
Seismic performance contact closure: 4 gn (5...300 Hz) Impact resistance contact closure: 15 gn (11ms) Impact resistance contacts open: 8 gn (11ms) |
| height |
85 mm
|
| width |
90 mm
|
| depth |
92 mm
|
| product weight |
0.787 kg
|
Product Highlights
Chint CJX2-N AC Reversing Contactor 3P, 4P 9A~95A 1810, 2510, 3210, 6511, AC-3 AC-1 Coil Voltage 24V,110V,230V,380V characteristic • Current range 09~95A; • AC, DC control coil is optional (DC coil to 38A); • Different types of starters are available: standard motor start contactors, reversible ...
