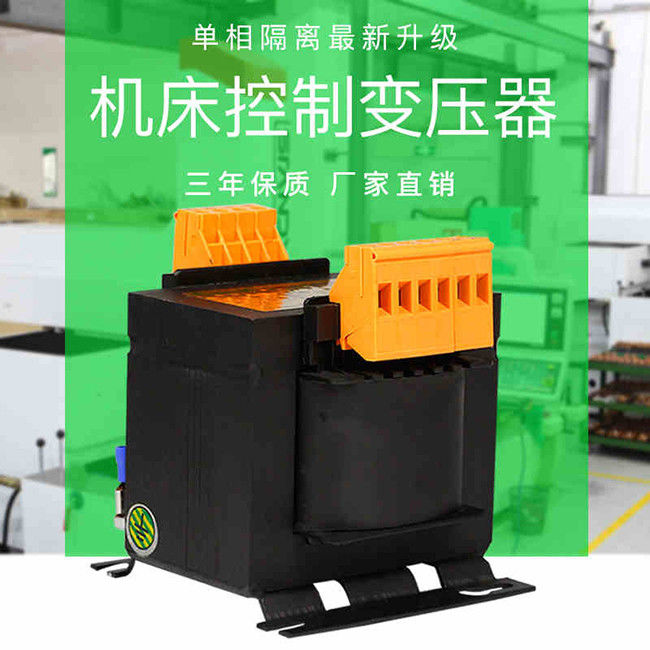

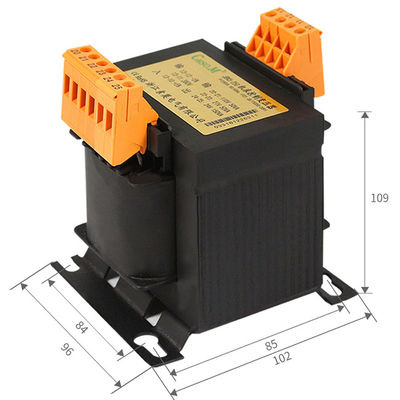

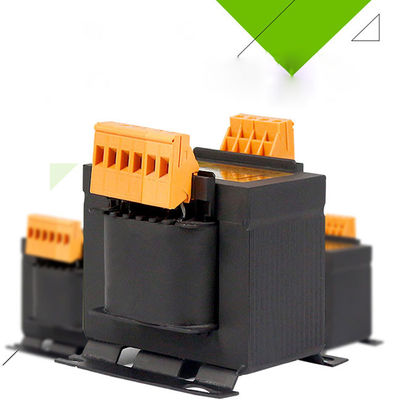

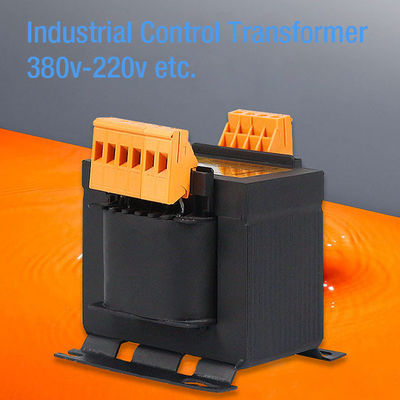

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V

  • 40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V
  • 40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V
  • 40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V
  • 40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V
40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V
Product Details:
Place of Origin: China
Brand Name: None
Certification: CE,CCC
Model Number: JBK5 etc.
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD15~USD180
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 5,000pcs/month
Contact Now
Detailed Product Description
Rated Frequency: 50/60Hz Ambient Temperature: -25~40 Degree Celsius
Rated Capacity: 40~2500VA Primary Voltage: 230V, 380/400V
Install: Screw Plate Mount Secondary Voltage: 220,110,36,27,24,12,6V
High Light:

surge protection device

,

industrial control transformer

JBK5 Industrial Control Transformer Machine Tool Capacity 40VA~2500VA with Primary Voltage AC230V,400V IEC61558





Industrial Control Transformers (Machine Tool)

Industry standard for design innovation and performance

Control power transformers are designed with low impedance windings for voltage regulation, and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays.



The JBK5 series machine tool control transformer is suitable for the 50/60Hz,under the 500V AC voltage circuit.It is used for controlling power supply for machine tool electrical appliances,lighting and indicator lamps,etc.



Operating conditions
We always adopt gas argon arc welding for the connection among iron cores and between iron core and clamping piece (mounting piece) of JBK5 series control transformers, which enables the product to be an entirety, so that the structure is more reasonable and reliable. The mounting piece adopts technique of casting at a time and the earthing lugs are made of high quality corrosion protection alloy material, which sharply improves the reliability of grounding.



In addition, the products have advantages of reliable operation, low dissipation of energy, compact volume, safe wiring, wide applicability, etc.
3.1 Temperature: -5℃~+40℃,
should not exceed +35℃ the average value within 24 hours. If the lowest limit is -10℃ or -25℃, please declared.
3.2 Altitude: ≤2000m;
3.3 Relative humidity ≤90%, when the average lower limit value is under +25℃ within the month; ≤50% when the temperature is +40℃. And when lower temperature; the humidity could be relatively higher. But the temperature is lower, the humidity higher.



Main

product or component type

Industrial Control Transformer

Power Rating

1000 VA

Primary Voltage

220 x 440 V
230 x 460 V
240 x 480 V

Secondary Voltage

115/230 V
110/220 V
120/240 V



Complementary

Number of Phases

1 phase

Power Rating

1000 VA UL
1000 VA CSA
1000 VA NOM
630 VA CE

Primary to Secondary Voltage

220 x 440 V 110/220 V
230 x 460 V 115/230 V
240 x 480 V 120/240 V

temperature rise

115 °C

electrical connection

Screw clamp terminals

height

114.55 mm (4.51 in)

width

133.35 mm (5.25 in)

depth

160.02 mm (6.3 in)

material

Copper winding

Fingersafe Cover Compatibility

FSC2



Environment

product certifications

CE

Enclosure Type

Not rated (open device)

insulation temperature

356 °F (180 °C)



Ordering and shipping details

Category

16201 - 9070 T (NOT TF) 250-2000VA

Package weight(Lbs)

9.86 kg (21.74 lb(US))

Returnability

Yes

Country of origin

China

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V 0

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V 1



40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V 2

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V 3

40VA~2500VA Industrial Control Transformer , Machine Tool Control Transformer Primary Voltage AC230V 400V 4
