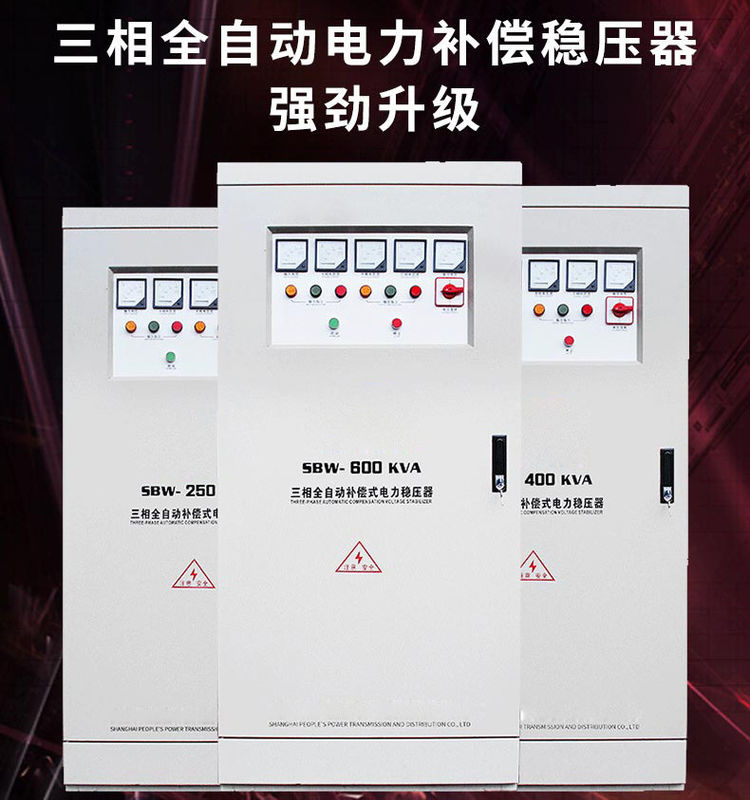

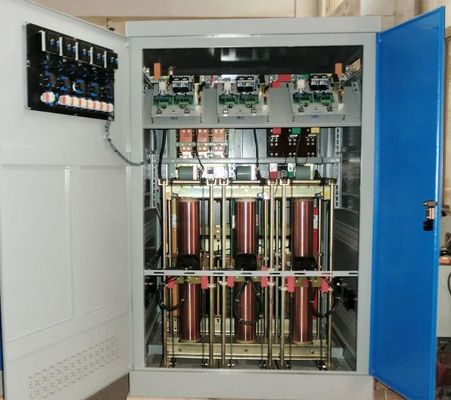

250 Kva Automatic Voltage Regulator
Product Details
| Voltage: | 380V/415V | Power: | 250kVA~600kVA(3phase) |
|---|---|---|---|
| Material: | Steel Case + Pure Copper Coil | Name: | Automatic Voltage Regulator |
| Highlight |
250 Kva auto voltage regulator,415V avr voltage regulator |
||
Product Description
Three Phase Compensated Stabilizer 250Kva 400Kva 600Kva 415V 380V Ac Adjustable Automatic Voltage Regulator
Widely used in the fields of post office,store,elevator,hospital,school,publishing house and stock exchange where normal voltage is in need,and also can be used in the factories of large and middle-scale industrial and mining corp,it is very much suitable for some important devices and supporting single machine.
Technical parameter
1. Power Range: 250kVA-600kVA (three phase);
2. Input Voltage: Ordinary 304-456V, or optional larger range;
3. Output Voltage: 380V±1-5% (Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized);

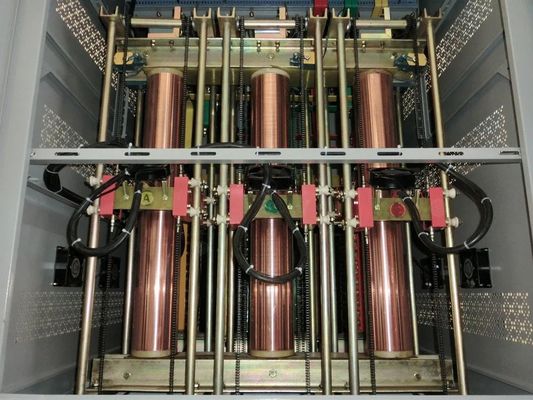

4. Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
5. Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
6. Frequency: 50~60Hz;
7. Electric intensity: The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1minute;
8. Overload Capacity: It can last 1 minute at the rated current of two times;
9. Protective function:it offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure;
10. Adjusting Time: <1s ( when input voltage has a change of 10%);
11. Response Speed: <1.5S
12. Waveform Distortion: No additional waveform distortion;
13. Efficiency: >98%;
14. Relative Humidity: ≤95%;
15. Ambient Temperature: -5 ~ +40°C;
16. Insulation Resistance: ≥2MΩ;
17. Packaging Detail: In Standard Plywood Case
| Specification | SBW 50KVA up to 600KVA | |
| Input voltage | Single Phase:175V-265V | Three Phase:300V-456V |
| Output voltage | Single Phase:220V | Three Phase:380V |
| Output Deviance | 1-5% adjustable | |
| Frequency | 50Hz/60Hz | |
| Efficiency | ≥95% | |
| Response time | ≤1.5S | |
| Ambient temperature | -10°C~40°C | |
| Insulation resistance | ≥5MΩ | |
| Waveform distortion | Non-Lack Fidelity Wareform | |
| Overload | Double Reted Current,One Min | |
| Protect | Overvoltage,Overcurrent,Lack Phases | |
| Trade Items | ||
| MOQ | 1 Set | |
| Design Ability | OEM&ODM is welcome,can supply sample | |
| Certification | CE,ISO9001,PCT,SGS,CCC | |
| Packing | Standard Export Packing | |
| Payment Term | Trade Assurance,T/T,L/C,D/A,D/P Western Union and so on | |
| Delivery time | 7-10 working days after payment received | |
| Model (KVA) | Output Power (KVA) | Package Sizes(CM) | Weight(KG) |
| SBW-50K | 50 | 80*62*135 | 350 |
| SBW-60K | 60 | 80*62*135 | 370 |
| SBW-100K | 100 | 85*62*150 | 420 |
| SBW-120K | 120 | 100*72*170 | 450 |
| SBW-150K | 150 | 100*72*170 | 550 |
| SBW-180K | 180 | 100*72*170 | 570 |
| SBW-200K | 200 | 100*72*200 | 630 |
| SBW-225K | 225 | 110*80*180 | 660 |
| SBW-250K | 250 | 110*80*200 | 700 |
| SBW-300K | 300 | 110*80*210 | 740 |
| SBW-320K | 320 | 110*80*210 | 760 |
| SBW-400K | 400 | 100*80*210 Double cabinet | 1100 |
| SBW-500K | 500 | 100*80*210 Double cabinet | 1500 |
| SBW-600K | 600 | 100*80*210 Double cabinet | 2200 |
