Single Phase Three Phase 415v Power Voltage Stabilizer Full Automatic Compensated
Product Details
| Voltage: | 380V/415V | Power: | 250kVA~600kVA(3phase) |
|---|---|---|---|
| Material: | Steel Case + Pure Copper Coil | Name: | Automatic Voltage Regulator |
| Highlight |
415v power voltage stabilizer,single phase power voltage stabilizer 415v,250 kva compensated power stabilizer |
||
Product Description

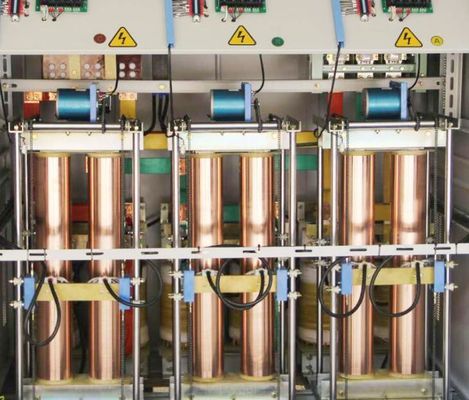

DBW/SBW Series single-phase and three phase full-automatic compensated power voltage stabilizer
Application:

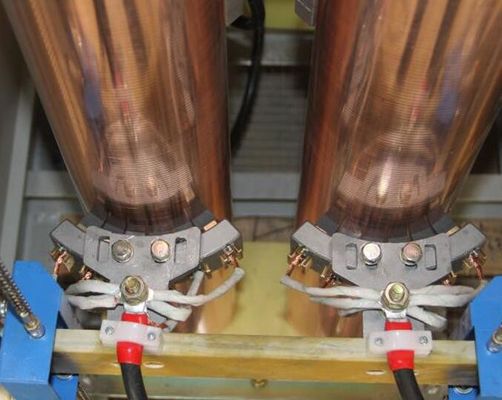

DBW-D/SBW-D series single-phase and three phase full-automatic compensation power voltage stabilizer(hereafter call voltage stabilizer) is a contact adjustable stabilizer,application when outside electricity power fluctuation or load power all time difference rebellious voltage fluctuation,this stabilizer can automatic keep output voltage stabilization,this series products compare with other stabilizer have as follow feature:have big capacity,efficiency very high, non-lack fidelity in wave distortion,the voltage adjustable balance,self-cooling and successively working for long period and long service time,can endure instantaneous over-load,as well as transferring between manual control and automatic control system,besides it is provided with protection over-voltage,over-load(over-current),lack phase or phase fail,phase sequence protect and mechanical breakdown automatic protect,EMI and surge protector and has following merites:small volume,light weight.convenient installation and reliable running and so on(pin meter display and digital display),
Service Occasions:
Widely used in electromechanical equipment,metal processing equipment,production line.construction device.excvavtor for gold mine,post and telecommunications,department stores,elevators.hospitals equipment.schools.printing machine.securities and other occasions where all need normally voltage to ensure,such as workshop mines medium enterprises.some of the important equipement and computer power and support where need voltage stabilization.
Spec.:
| Input Voltage Range | Single Phase 220V±20%,220V±30%(DBW) Three phase four wire,300V-460V or 266V-495V(SBW).pls indicate when placing order |
| Phase Number | Single Phase Three Wire(DBW)/Three Phase Four Wire(SBW) |
| Frequency | 50/60Hz |
| Output Voltage |
Single Phase 220V(DBW) Three phase four wire,phase voltage 220V,wire voltage 380V,singe-phase voltage 220V(SBW) |
| Output Precsion | 380V±3%,220V±2%,2-5% adjustable |
| Response Time | <1.5sec.against 10% input voltage deviation |
| Efficiency AC-AC | >98% other we can do according to customer requirement such as 80% |
| Power Factor Cost | 0.8 |
| Waveform Distortion | Non-lack fidelity waveform, Sine Wave |
| Insulation Resistance | >2MΩ |
| Over-load capability | 2 times rated current,keeping 1minuter(voltage stabilizer special for elevator and CT and servo-motor and water pump) |
| Electric Strength | Bear power frequency sine voltage 2000V for 1 Minute without breakdown or flash over. |
| Auto/Manual | Power on can be choice inside build knife switch and AC contactor |
| Protection Function | Over-Voltage,under-voltage.Over-load(over-current), Short Circuit,Delay time choice,surge protect,EMI,phase-sequency and phase fail and phase UN-balance protection and machical fault., |
| Ambient Temperature | -10℃+45℃ |
| Relative Humidity | >90% |
DBW Series Packing information:
| Model | Output Max Current(A) | Products Dimension(cm) | Net Weight(kg) |
| DBW-10kVA | 45 | 70×50×135 | 270 |
| DBW-15kVA | 68 | 70×50×135 | 275 |
| DBW-20kVA | 91 | 70×50×135 | 278 |
| DBW-25kVA | 114 | 70×50×135 | 300 |
| DBW-30kVA | 136 | 70×50×135 | 310 |
| DBW-40kVA | 182 | 70×50×135 | 330 |
| DBW-50kVA | 227 | 80×60×150 | 350 |
| DBW-60kVA | 273 | 80×60×150 | 370 |
| DBW-80kVA | 364 | 80×60×150 | 430 |
| DBW-100kVA | 455 | 90×70×170 | 470 |
| DBW-120kVA | 545 | 90×70×170 | 490 |
| DBW-150kVA | 682 | 90×70×170 | 530 |
| DBW-180kVA | 818 | 100×80×190 | 560 |
| DBW-200kVA | 909 | 100×80×190 | 590 |
SBW Series Packing information:
| Model | Output Max Current(A) | Products Dimension(cm) | Net Weight(kg) |
| SBW-30kVA | 45 | 70×57×121 | 250 |
| SBW-50kVA | 76 | 80×54×135 | 300 |
| SBW-60kVA | 91 | 80×54×135 | 315 |
| SBW-80kVA | 121 | 85×62×150 | 350 |
| SBW-100kVA | 152 | 85×62×150 | 400 |
| SBW-120kVA | 182 | 85×62×150 | 460 |
| SBW-150kVA | 227 | 100×70×165 | 480 |
| SBW-180kVA | 273 | 100×70×165 | 550 |
| SBW-200kVA | 303 | 100×70×165 | 580 |
| SBW-225kVA | 241 | 110×80×185 | 715 |
| SBW-250kVA | 379 | 110×80×185 | 755 |
| SBW-300kVA | 455 | 110×80×200 | 810 |
| SBW-320kVA | 485 | 110×80×200 | 900 |
| SBW-350kVA | 530 | 110×80×200 | 950 |
| SBW-400kVA | 606 | 120×85×200 | 1030 |
| SBW-450kVA | 682 | 100×80×200/2 Case | 1380 |
| SBW-500kVA | 758 | 100×80×200/2 Case | 1510 |
| SBW-600kVA | 909 | 100×80×200/2 Case | 1700 |
| SBW-800kVA | 1212 | 100×80×200/3 Case | 2750 |
| SBW-1000kVA | 1515 | 100×80×200/3 Case | 3050 |
| SBW-1200kVA | 1818 | 100×80×200/4 Case | 3650 |
| SBW-1400kVA | 2121 | 100×80×200/4 Case | 4080 |
| SBW-1600kVA | 2424 | 100×80×200/4 Case | 5100 |
| SBW-2000kVA | 3030 | 100×80×200/4 Case | 5800 |
